0040.5000.2
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0040.5000.2
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0040.5000.2 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, cURus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 33.3 mm |
| Panel Cutout Dimensions [y] | 33.3 mm |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.15 | |
| 50 | $ 34.25 | |||
| 100 | $ 26.16 | |||
| 500 | $ 24.61 | |||
Description
General part information
0040.5000 Series

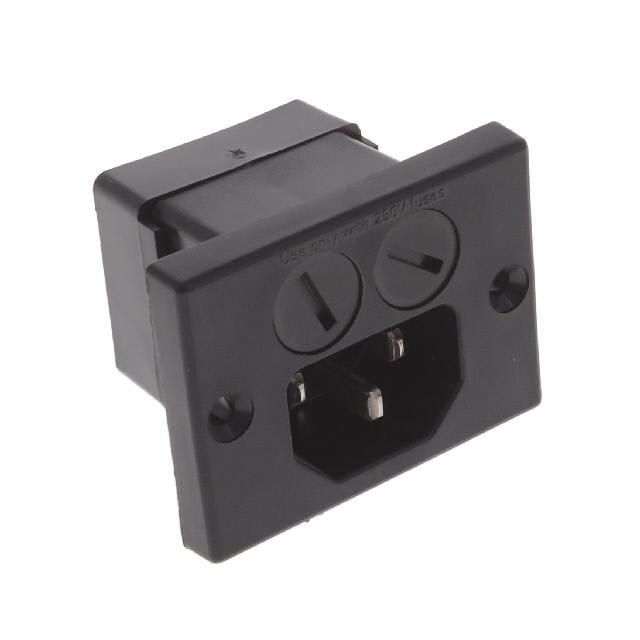

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Documents
Technical documentation and resources
