032,AL

Active

Serpac

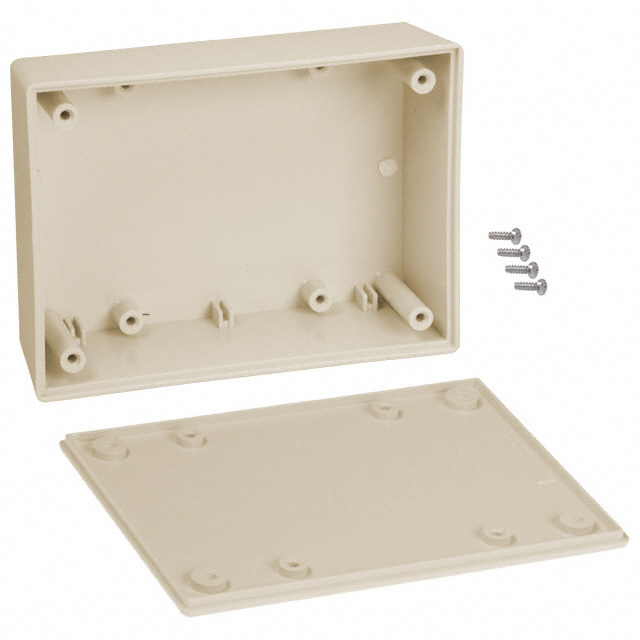

BOX ABS ALMOND 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	032,AL

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Almond
Container Type	Box
Features	PCB Supports
Height [z]	35.56 mm
Height [z]	1.4 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.18 lb
Weight	81.65 g

Part	Thickness	Thickness	Color	Area (L x W)	Area (L x W)	Material	Weight	Weight	Material Flammability Rating	Container Type	Ratings	Features	Design	Height [z]	Height [z]
Serpac 032W,AL	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	Plastic ABS	0.18 lb	81.65 g	UL94 HB	Box	IP40 NEMA 1	PCB Supports Wall Mount	Cover Included Hand Held	35.56 mm	1.4 in
Serpac 032,AL	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	Plastic ABS	0.18 lb	81.65 g	UL94 HB	Box	IP40 NEMA 1	PCB Supports		35.56 mm	1.4 in
Serpac 032W,GY	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	Plastic ABS	0.18 lb	81.65 g	UL94 HB	Box	IP40 NEMA 1	PCB Supports Wall Mount		35.56 mm	1.4 in
Serpac 032C,AL	2.54 mm	0.1 in		14.2 in²	92 cm˛	Plastic Polycarbonate	0.18 lb	81.65 g		Box	IP40 NEMA 1	PCB Supports	Cover Included Hand Held	35.56 mm	1.4 in
Serpac 032,BK	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛	Plastic ABS	0.18 lb	81.65 g	UL94 HB	Box	IP40 NEMA 1	PCB Supports		35.56 mm	1.4 in
Serpac 032C,GY	2.54 mm	0.1 in	Clear Cover/Door Gray	14.2 in²	92 cm˛	Plastic Polycarbonate	0.18 lb	81.65 g		Box	IP40 NEMA 1	PCB Supports		35.56 mm	1.4 in
Serpac 032,GY	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	Plastic ABS	0.18 lb	81.65 g	UL94 HB	Box	IP40 NEMA 1	PCB Supports	Cover Included Hand Held	35.56 mm	1.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.80

General part information

Box Plastic, ABS Almond 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.400" (35.56mm)

Technical documentation and resources

No documents available
