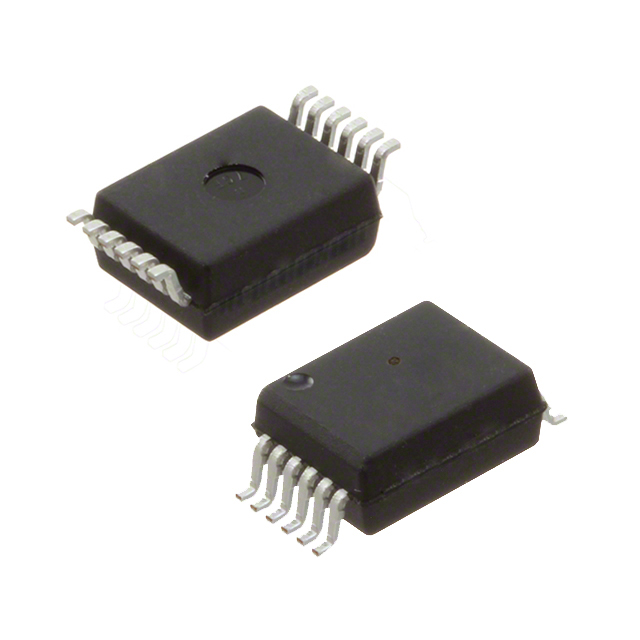

ACFL-6211U-560E

Active

Broadcom Limited

OPTOISO 5KV 2CH PUSH PULL 12-SO

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 5KV 2CH PUSH PULL 12-SO

Technical Specifications

Parameters and characteristics for this part

Specification	ACFL-6211U-560E

Common Mode Transient Immunity (Min) [Min]	15 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel [custom]	10 mA
Input Type	DC
Inputs - Side 1/Side 2	1/1
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Totem Pole, Push-Pull
Package / Case	12-BSOP
Package / Case [y]	7.5 mm
Package / Case [y]	0.295 in
Propagation Delay tpLH / tpHL (Max)	35 ns
Rise / Fall Time (Typ) [custom]	10 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	12-SO
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

Part	Supplier Device Package	Data Rate	Common Mode Transient Immunity (Min) [Min]	Current - Output / Channel [custom]	Qualification	Current - DC Forward (If) (Max) [Max]	Grade	Number of Channels [custom]	Inputs - Side 1/Side 2	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [y]	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max)	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Forward (Vf) (Typ)	Output Type
Broadcom Limited ACFL-6211T-060E	12-SO	15 Mbps	15 kV/µs	10 mA	AEC-Q100	20 mA	Automotive	2	1/1	Surface Mount	125 °C	-40 °C	12-BSOP	7.5 mm	0.295 in	DC	10 ns	10 ns	35 ns	5.5 V	3 V	1.5 V	Push-Pull Totem Pole
Broadcom Limited ACFL-6211U-560E	12-SO		15 kV/µs	10 mA		20 mA		2	1/1	Surface Mount	125 °C	-40 °C	12-BSOP	7.5 mm	0.295 in	DC	10 ns	10 ns	35 ns	5.5 V	3 V	1.5 V	Push-Pull Totem Pole
Broadcom Limited ACFL-6211T-500E	12-SO	15 Mbps	15 kV/µs	10 mA	AEC-Q100	20 mA	Automotive	2	1/1	Surface Mount	125 °C	-40 °C	12-BSOP	7.5 mm	0.295 in	DC	10 ns	10 ns	35 ns	5.5 V	3 V	1.5 V	Push-Pull Totem Pole
Broadcom Limited ACFL-6211U-500E	12-SO		15 kV/µs	10 mA		20 mA		2	1/1	Surface Mount	125 °C	-40 °C	12-BSOP	7.5 mm	0.295 in	DC	10 ns	10 ns	35 ns	5.5 V	3 V	1.5 V	Push-Pull Totem Pole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 3.14

General part information

Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 2 Channel 15kV/µs CMTI 12-SO

Technical documentation and resources

No documents available
