HS16-3SN

Obsolete

NKK Switches

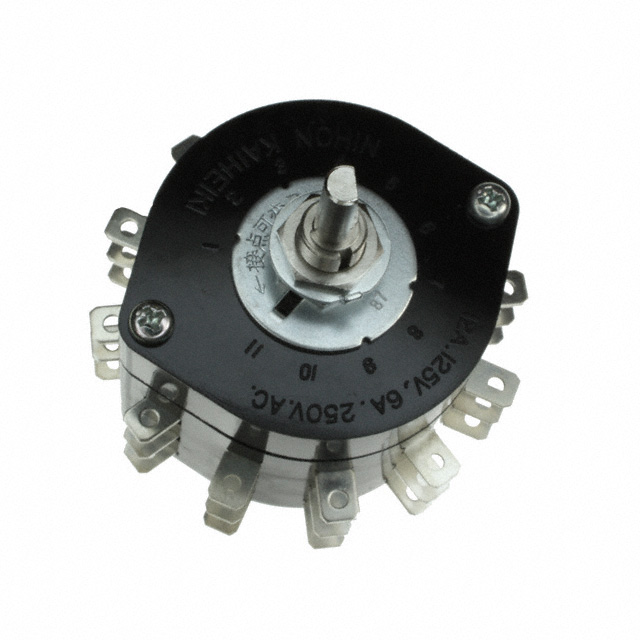

SWITCH ROTARY 2-11POS 12A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROTARY 2-11POS 12A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	HS16-3SN

Actuator Length [x]	15 mm
Actuator Type	Flatted
Actuator Type [diameter]	6 mm
Angle of Throw	30 °
Circuit per Deck [custom]	SP11T
Contact Material	Phosphor Bronze
Contact Timing	Shorting
Current Rating (Amps)	12 A
Depth Behind Panel [z]	51.5 mm
Index Stops	Adjustable
Number of Decks	3
Number of Poles per Deck	1
Number of Positions [Max]	11
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	10.3 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Contact Timing	Termination Style	Actuator Type	Actuator Type [diameter]	Angle of Throw	Panel Cutout Dimensions [diameter]	Number of Positions [Max]	Number of Positions [Min]	Voltage Rating - AC	Index Stops	Number of Poles per Deck	Depth Behind Panel [z]	Actuator Length [x]	Contact Material	Circuit per Deck [custom]	Number of Decks
NKK Switches HS16-3SN	12 A	Shorting	Solder Lug	Flatted	6 mm	30 °	10.3 mm	11	2	125 V	Adjustable	1	51.5 mm	15 mm	Phosphor Bronze	SP11T	3
NKK Switches HS16-3N	12 A	Non-Shorting	Solder Lug	Flatted	6 mm	30 °	10.3 mm	11	2	125 V	Adjustable	1	51.5 mm	15 mm	Phosphor Bronze	SP11T	3
NKK Switches HS16-3S	12 A	Shorting	Solder Lug	Knurled		30 °	10.3 mm	11	2	125 V	Adjustable	1	51.5 mm	15 mm	Phosphor Bronze	SP11T	3
NKK Switches HS16-3S/U	12 A	Shorting	Solder Lug	Knurled		30 °	10.3 mm	11	2	125 V	Adjustable	1	51.5 mm	15 mm	Phosphor Bronze	SP11T	3
