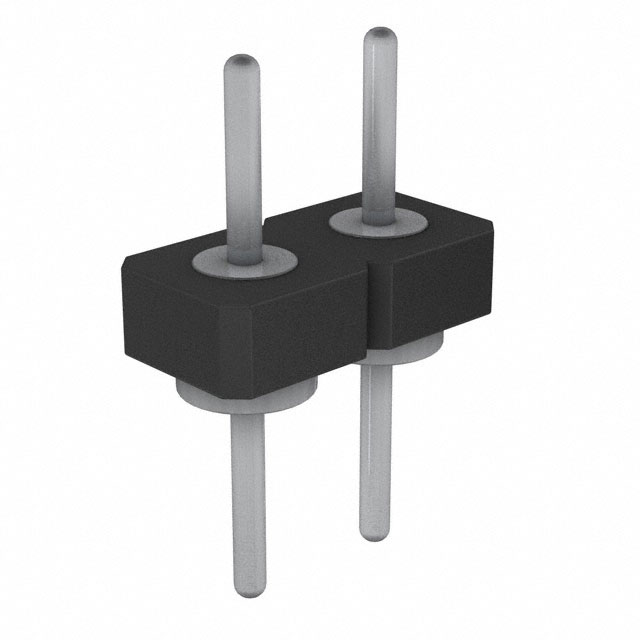

BDL-101-T-E

Active

Samtec Inc.

CONN HEADER VERT 2POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 2POS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Termination	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Insulation Material	Shrouding	Number of Positions	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. BDL-101-T-E	2	2.54 mm	0.1 in	Circular	3.18 mm	0.125 in	Male Pin	Solder	Push-Pull	0.07 in	1.78 mm	Black	7.62 mm	0.3 in	Tin	Nylon Polyamide (PA)	Unshrouded	2	Through Hole	Header	-55 °C	125 °C	All
Samtec Inc. BDL-101-T-F	2	2.54 mm	0.1 in	Circular	3.18 mm	0.125 in	Male Pin	Solder	Push-Pull	0.085 "	2.15 mm	Black	0.332 in		Tin	Nylon Polyamide (PA)	Unshrouded	2	Through Hole	Header	-55 °C	125 °C	All	8.43 mm	0.122 in	3.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.61

General part information

Connector Header Through Hole 2 position
