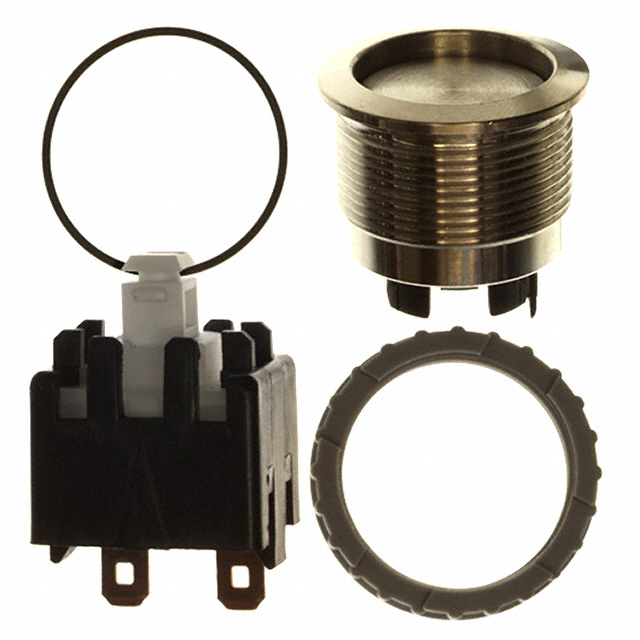

1241.6831.1110000

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 12A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPST 12A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6831.1110000

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	12 A
Electrical Life	50000 Cycles
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22.1 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

Part	Ingress Protection	Actuator Marking	Mechanical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - AC	Switch Function	Color - Actuator/Cap	Electrical Life	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Type	Termination Style	Circuit
SCHURTER Inc. 1241.6831.1110000	IP64 - Dust Tight Water Resistant	No Marking	100000 Cycles	12 A	22.1 mm	Anti-Vandal	250 V	Off-On	Silver	50000 Cycles	Panel Mount Front	85 °C	-20 C	30 V	Button Round	Quick Connect - 0.187" (4.7mm)	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal Panel Mount, Front
