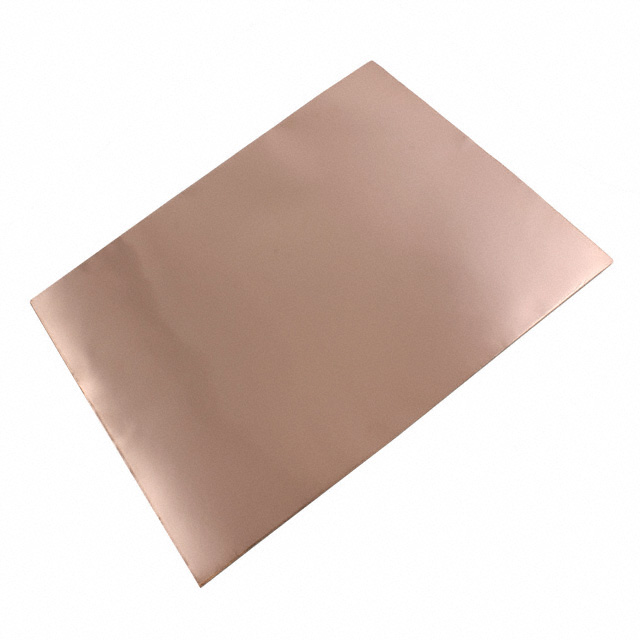

1194 7.7"X10"

Active

3M (TC)

RF EMI SHIELDING TAPE 10" X 7.7"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1194 7.7"X10"

Active

3M (TC)

RF EMI SHIELDING TAPE 10" X 7.7"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1194 7.7"X10"

Adhesive	Single Sided, Non-Conductive
Length	10 in
Length	254 mm
Material	Copper Foil
Thickness - Overall	0.003 "
Thickness - Overall	0.07 mm
Type	Shielding Tape
Width	7.7 in
Width	195 mm

1194 Series

Part	Shelf Life Start	Width [x]	Width [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Adhesive	Usage	Color	Shelf Life	Tape Type	Length	Length	Length	Width	Width	Width	Material	Thickness - Overall	Thickness - Overall	Type	Width	Shape
3M (TC) 1194 12MMX33MMC19	Date of Manufacture	0.47 in	12 mm	0.0014 in	1.4 mils	0.035 mm	Copper Foil	Acrylic	EMI Shielding	Natural	60 Months	Copper Foil	36 yd	32.9 m	108 ft
3M (TC) 1194 1.5"X36YD	Date of Manufacture			0.0014 in	1.4 mils	0.035 mm	Copper Foil	Acrylic	EMI Shielding	Natural	60 Months	Copper Foil	36 yd	32.9 m	108 ft	1.5 "	38.1 mm	1 1/2
3M (TC) 1194 25MMX33MMC9	Date of Manufacture			0.0014 in	1.4 mils	0.035 mm	Copper Foil	Acrylic	EMI Shielding	Natural	60 Months	Copper Foil	36 yd	32.9 m	108 ft	0.98 "	25 mm
3M (TC) 1194-1/4"X36YD								Non-Conductive Single Sided						32.92 m	108.005 ft	0.25 in	6.35 mm		Copper Foil	0.003 "	0.07 mm	Shielding Tape
3M (TC) 1194 7.7"X10"								Non-Conductive Single Sided						254 mm	10 in	7.7 in	195 mm		Copper Foil	0.003 "	0.07 mm	Shielding Tape
3M (TC) 1194-3/4"X36YD	Date of Manufacture							Non-Conductive Single Sided			60 Months			32.92 m	108.005 ft	0.75 in	19.1 mm		Copper Foil	0.003 "	0.07 mm	Shielding Tape
3M (TC) 1194 4.25"X36YD	Date of Manufacture			0.0014 in	1.4 mils	0.035 mm	Copper Foil	Acrylic	EMI Shielding	Natural	60 Months	Copper Foil	36 yd	32.9 m	108 ft	4.25 in							107.95 mm
3M (TC) 1194 .6"X36YD	Date of Manufacture	6 in	152.4 mm	0.0014 in	1.4 mils	0.035 mm	Copper Foil	Acrylic	EMI Shielding	Natural	60 Months	Copper Foil	36 yd	32.9 m	108 ft
3M (TC) 3M 1194 8" X 10"-25	Date of Manufacture	8 in	203.2 mm					Non-Conductive Single Sided			60 Months			254 mm	10 in				Copper Foil	0.003 "	0.07 mm	Shielding Sheet		Rectangular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.93
		10	$ 21.15
		30	$ 20.20
		100	$ 18.06
		250	$ 17.23
		500	$ 16.40

Description

General part information

1194 Series

RF EMI Shielding Tape 1194 Copper Foil Non-Conductive, Single Sided 7.700" (195.00mm) X 10.000" (254.00mm) X 0.003" (0.07mm)
