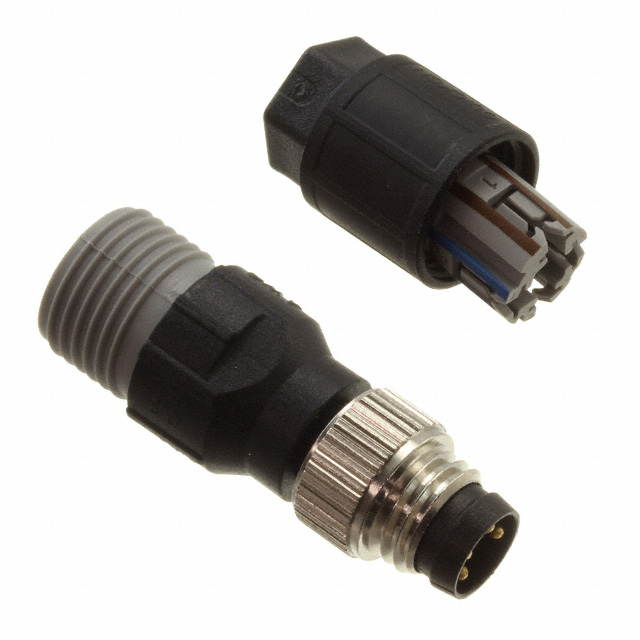

V31S-GM-Q4

Active

PEPPERL+FUCHS

CONN PLUG MALE 4POS GOLD IDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG MALE 4POS GOLD IDC

Technical Specifications

Parameters and characteristics for this part

Part	Shell Material	Backshell Material, Plating	Contact Finish - Mating	Shielding	Applications	Primary Material	Termination	Current Rating (Amps)	Ingress Protection	Features	Number of Positions	Connector Type	Shell Size - Insert	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shell Finish	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Material
PEPPERL+FUCHS V31S-GM	Copper Zinc	Polybutylene Terephthalate (PBT)	Gold	Unshielded	Industrial Automation	Metal	Screw	4 A	IP67 - Dust Tight Waterproof	Backshell	4	Male Pins Plug	M8-4	UL94 V-0	Black Silver	85 °C	-40 °C	70 VDC	Nickel	Free Hanging (In-Line)	5 mm	3.5 mm	0.197 in	0.138 in	Copper Zinc
PEPPERL+FUCHS V31S-GM-Q4	Brass	Nylon 6 Polyamide (PA6)	Gold	Unshielded	Industrial Automation	Metal	IDC	4 A	IP65 IP67	Backshell	4	Male Pins Plug	M8-4		Black Silver	80 C	-25 °C	30 VAC	Nickel	Free Hanging (In-Line)	5 mm	2.5 mm	0.197 in	0.098 in	Copper Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins IDC

Technical documentation and resources

No documents available
