19410060422

Active

HARTING Technology Group

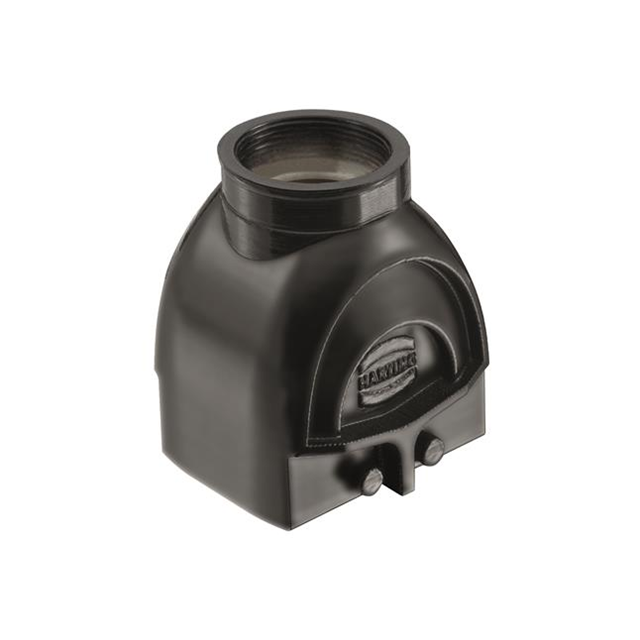

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 6B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 6B

Technical Specifications

Parameters and characteristics for this part

Specification	19410060422

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	2.402 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	75.1 mm
Size / Dimension [z]	2.957 "
Style	Top Entry
Thread Size	M32

Part	Connector Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Size	Lock Location	Thread Size	Housing Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]
HARTING Technology Group 19410060422	Hood	Top Entry	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled	6B	Locking Clip (2) on Base Bottom	M32	Black	75.1 mm	2.244 "	57 mm	2.957 "	2.402 in	61 mm
HARTING Technology Group 19410060331
HARTING Technology Group 19410060522	Hood	Side Entry	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled	6B	Locking Clip (2) on Base Bottom	M32	Black	68.4 mm	2.244 "	57 mm	2.693 in	2.402 in	61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 6B IP65 - Dust Tight, Water Resistant
