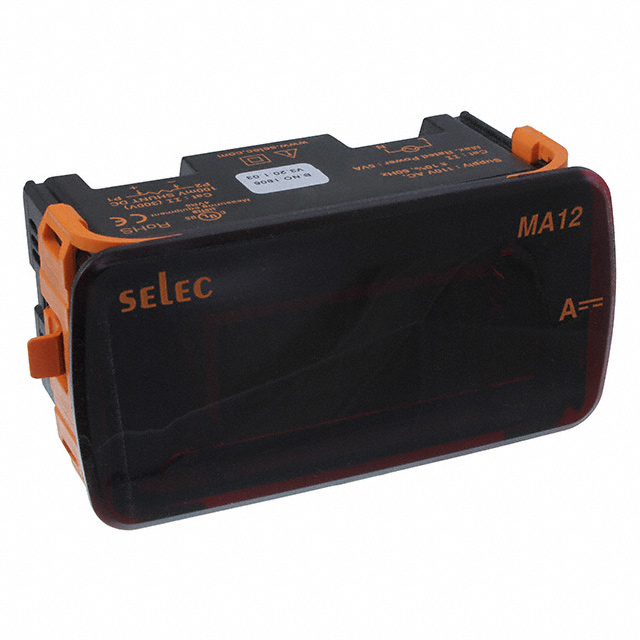

MA12-240V

Active

Altech Corporation

AMPERE METER 18DIN LED AMPERE 1P

Search across all available documentation for this part.

Active

Altech Corporation

AMPERE METER 18DIN LED AMPERE 1P

Technical Specifications

Parameters and characteristics for this part

Specification	MA12-240V

null

Part	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply	Number of Characters Per Row	Display Type	Measuring Range [Max]	Measuring Range [Min]	Measuring Type	Ingress Protection	Type
Altech Corporation MA12-110V-CU	Screw Terminal	55 °C	-10 °C	92 mm	46 mm	110 VAC/DC	4	LED - Red Characters	4960 A	0 A	Current	IP65 - Dust Tight Water Resistant	Ammeter
Altech Corporation MA12-50MV-DC-110V-CU	Screw Terminal	55 °C	-10 °C	92 mm	46 mm	110 VAC/DC	4	LED - Red Characters	4960 A	0 A	Current	IP65 - Dust Tight Water Resistant	Ammeter
Altech Corporation MA12-240V
Altech Corporation MA12-230V-CU
TE Connectivity Raychem Cable Protection MA12-100MV-DC-110V-CU	Screw Terminal	55 °C	-10 °C	92 mm	46 mm	110 VAC/DC	4	LED - Red Characters	4960 A	0 A	Current	IP65 - Dust Tight Water Resistant	Ammeter
Altech Corporation MA12-100MV-DC-110V-CU	Screw Terminal	55 °C	-10 °C	92 mm	46 mm	110 VAC/DC	4	LED - Red Characters	4960 A	0 A	Current	IP65 - Dust Tight Water Resistant	Ammeter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.62

General part information

Display

Technical documentation and resources

No documents available
