J1511CP120VAC1.2D

Active

CIT Relay and Switch

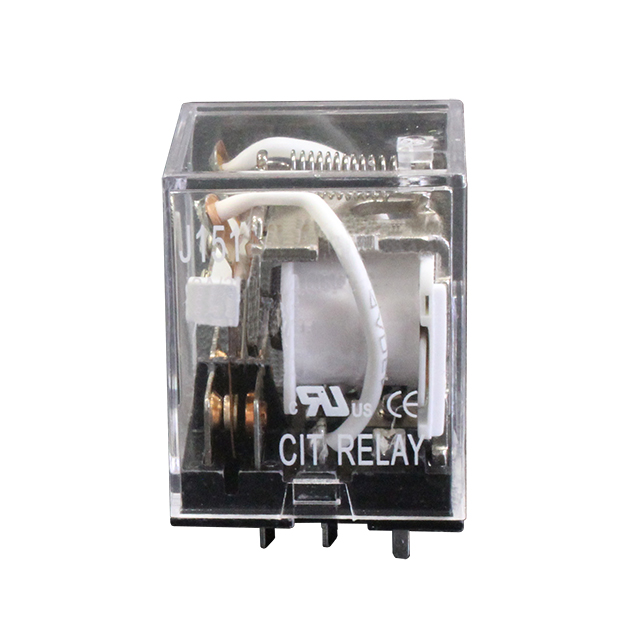

RELAY GEN PURPOSE SPDT 20A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Relay Socket Catalog

J1511CP120VAC1.2D

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 20A 120V

Deep-Dive with AI

DocumentsDatasheet Relay Socket Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J1511CP120VAC1.2D

Coil Current	26.4 mA
Coil Resistance	4.55 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	12 A
Features	Lighted Indicator
Load - Max Switching	6000 VA
Mounting Type	Through Hole
Must Operate Voltage	96 VAC
Must Release Voltage	36 VAC
Operate Time	25 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage [Max]	300 VAC
Termination Style	PC Pin

J1511C Series

Part	Relay Type	Mounting Type	Switching Voltage [Max]	Contact Form	Coil Current	Contact Rating (Current)	Must Operate Voltage	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Load - Max Switching	Coil Resistance	Coil Voltage	Coil Type	Release Time	Must Release Voltage	Features
CIT Relay and Switch J1511CP48VAC1.2	General Purpose	Through Hole	300 VAC	SPDT (1 Form C)	65.3 mA	12 A	38.4 VAC	Silver Cadmium Oxide (AgCdO)	PC Pin	85 °C	-40 °C	25 ms	6000 VA	735 Ohms	48 VAC/DC	Non Latching	25 ms	14.4 VAC
CIT Relay and Switch J1511CF120VAC1.2	General Purpose	Chassis Mount	300 VAC	SPDT (1 Form C)	26.4 mA	12 A	96 VAC	Silver Cadmium Oxide (AgCdO)	Plug In	85 °C	-40 °C	25 ms	6000 VA	4.55 kOhms	120 VAC	Non Latching	25 ms	36 VAC
CIT Relay and Switch J1511CP48VDC.9	General Purpose	Through Hole	300 VAC	SPDT (1 Form C)	18.5 mA	12 A	36 VDC	Silver Cadmium Oxide (AgCdO)	PC Pin	85 °C	-40 °C	25 ms	6000 VA	2.6 kOhms	48 VDC	Non Latching	25 ms	4.8 VDC
CIT Relay and Switch J1511CF48VAC1.2	General Purpose	Chassis Mount	300 VAC	SPDT (1 Form C)	65.3 mA	12 A	38.4 VAC	Silver Cadmium Oxide (AgCdO)	Plug In	85 °C	-40 °C	25 ms	6000 VA	735 Ohms	48 VAC/DC	Non Latching	25 ms	14.4 VAC
CIT Relay and Switch J1511CF12VDC.9	General Purpose	Chassis Mount	300 VAC	SPDT (1 Form C)	75 mA	12 A	9 VDC	Silver Cadmium Oxide (AgCdO)	Plug In	85 °C	-40 °C	25 ms	6000 VA	160 Ohms	12 VDC	Non Latching	25 ms	1.2 VDC
CIT Relay and Switch J1511CP120VAC1.2D	General Purpose	Through Hole	300 VAC	SPDT (1 Form C)	26.4 mA	12 A	96 VAC	Silver Cadmium Oxide (AgCdO)	PC Pin	85 °C	-40 °C	25 ms	6000 VA	4.55 kOhms	120 VAC	Non Latching	25 ms	36 VAC	Lighted Indicator
CIT Relay and Switch J1511CP220VDC.9D	General Purpose	Through Hole	300 VAC	SPDT (1 Form C)	4.1 mA	12 A	165 VDC	Silver Cadmium Oxide (AgCdO)	PC Pin	85 °C	-40 °C	25 ms	6000 VA	53.778 kOhms	220 VDC	Non Latching	25 ms	22 VDC	Lighted Indicator
CIT Relay and Switch J1511CT240VAC1.2D	General Purpose	Socketable	300 VAC	SPDT (1 Form C)	12.6 mA	12 A	192 VAC	Silver Cadmium Oxide (AgCdO)	Plug In	85 °C	-40 °C	25 ms	6000 VA	19 kOhms	240 VAC	Non Latching	25 ms	72 VAC/DC	Lighted Indicator
CIT Relay and Switch J1511CT24VDC.9	General Purpose	Socketable	300 VAC	SPDT (1 Form C)	36.9 mA	12 A	18 VDC	Silver Cadmium Oxide (AgCdO)	Plug In	85 °C	-40 °C	25 ms	6000 VA	650 Ohms	24 VDC	Non Latching	25 ms	2.4 VDC
CIT Relay and Switch J1511CF24VDC.9D	General Purpose	Chassis Mount	300 VAC	SPDT (1 Form C)	36.9 mA	12 A	18 VDC	Silver Cadmium Oxide (AgCdO)	Plug In	85 °C	-40 °C	25 ms	6000 VA	650 Ohms	24 VDC	Non Latching	25 ms	2.4 VDC	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 4.26

Description

General part information

J1511C Series

General Purpose Relay SPDT (1 Form C) 120VAC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Relay Socket Catalog

Datasheet
