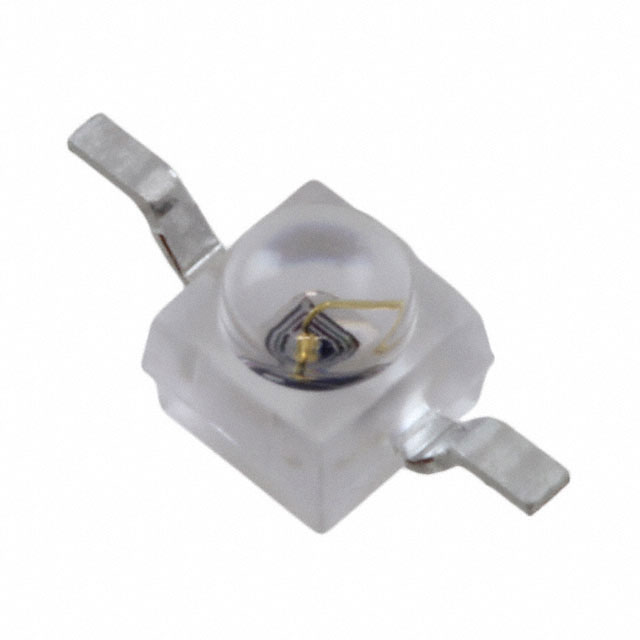

VLDB1232R-08
ActiveVishay General Semiconductor - Diodes Division
LED BLUE 2SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLDB1232R-08
ActiveVishay General Semiconductor - Diodes Division
LED BLUE 2SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLDB1232R-08 |
|---|---|
| Color | Blue |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2.97 mm |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 3500 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 2.3 mm |
| Size / Dimension [y] | 2.3 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 18 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 465 nm |
| Wavelength - Peak | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.77 | ||
| 10 | $ 0.46 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| Tape & Reel (TR) | 1500 | $ 0.22 | ||
| 3000 | $ 0.20 | |||
| 4500 | $ 0.20 | |||
| 7500 | $ 0.19 | |||
| 10500 | $ 0.18 | |||
| 15000 | $ 0.18 | |||
| 37500 | $ 0.17 | |||
Description
General part information
VLDB1232 Series
Blue 465nm LED Indication - Discrete 3V 2-SMD, Z-Bend
