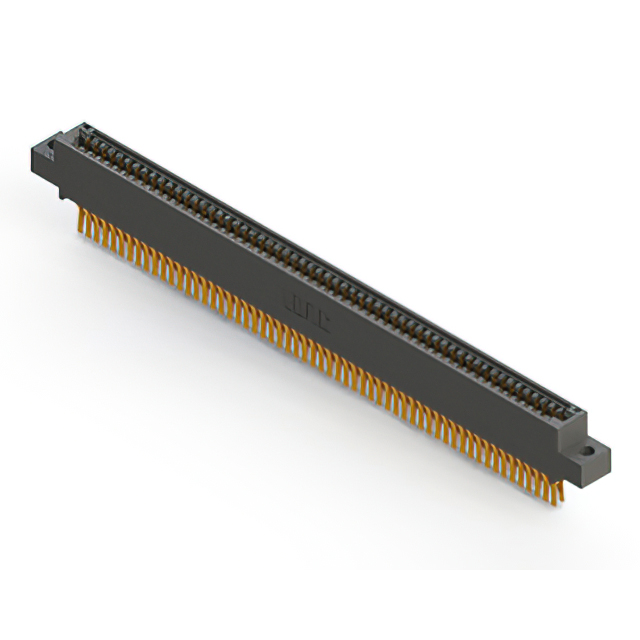

895-116-560-504

Active

EDAC Inc.

CARD EDGE CONNECTOR, 116 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-116-560-504

Active

EDAC Inc.

CARD EDGE CONNECTOR, 116 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-116-560-504

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	116
Number of Positions/Bay/Row [custom]	58
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-116 Series

...

Part	Contact Finish	Contact Material	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Type	Gender	Termination Rows	Number of Positions	Pitch [x]	Pitch [x]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Card Type	Number of Rows	Termination	Color	Features	Flange Feature	Flange Feature
EDAC Inc. 895-116-560-504	Gold	Copper Alloy	Board Edge Straddle Mount	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black	Card Extender
EDAC Inc. 895-116-542-204	Gold	Copper Alloy	Through Hole	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Wire Wrap	Black
EDAC Inc. 895-116-524-203	Gold	Copper Alloy	Through Hole	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black
EDAC Inc. 895-116-525-212	Gold	Copper Alloy	Through Hole	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black
EDAC Inc. 895-116-555-208	Gold	Copper Alloy	Board Edge Straddle Mount	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black	Card Extender
EDAC Inc. 895-116-523-503	Gold	Copper Alloy	Through Hole	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black
EDAC Inc. 895-116-556-201	Gold	Copper Alloy	Board Edge Straddle Mount	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám				1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black	Card Extender
EDAC Inc. 895-116-556-207	Gold	Copper Alloy	Board Edge Straddle Mount	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black	Card Extender
EDAC Inc. 895-116-520-507	Gold	Copper Alloy	Through Hole	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám		M3 Threaded Insert Top Mount Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black
EDAC Inc. 895-116-560-802	Gold	Copper Alloy	Board Edge Straddle Mount	58	Cantilever	Female	2	116	2.54 mm	0.1 in	Dual	10 Áin	0.25 Ám				1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	2	Solder	Black	Card Extender	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 101.25
Newark	Each	1	$ 121.50
		100	$ 86.86
		250	$ 73.64
		500	$ 65.59
		1000	$ 51.63

Description

General part information

895-116 Series

116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
