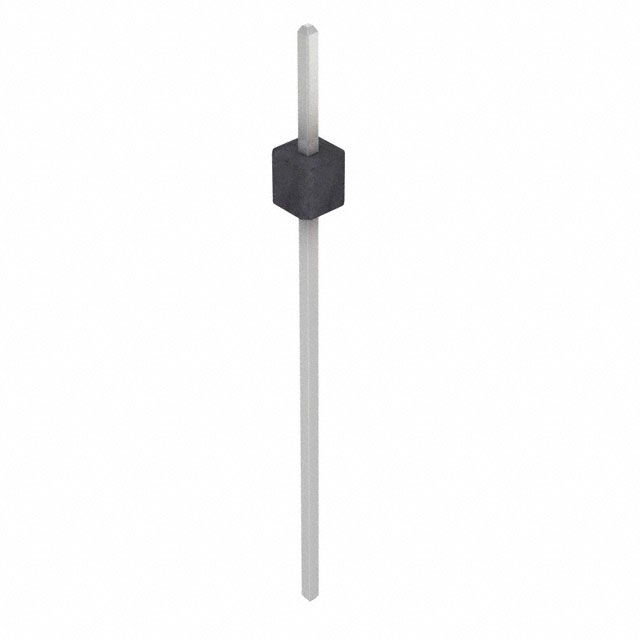

PTC01SAHN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 1POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC01SAHN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 1POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC01SAHN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	20.83 mm
Contact Length - Post [x]	0.82 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	1.15 in
Overall Contact Length	29.21 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC01 Series

Part	Contact Type	Number of Positions	Insulation Color	Termination	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Style	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Finish - Post	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Fastening Type	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PTC01DBEN	Male Pin	2	Black	Solder	Through Hole Right Angle	UL94 V-0	3 A	0.24 in	6.1 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	13.21 mm	0.52 "	0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2
Sullins Connector Solutions PTC01SADN	Male Pin	1	Black	Solder	Through Hole	UL94 V-0	3 A	0.1 in	2.54 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm			Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	1	0.75 in	19.05 mm	10.67 mm	0.42 in
Sullins Connector Solutions PTC01DACN	Male Pin	2	Black	Solder	Through Hole	UL94 V-0	3 A	0.1 in	2.54 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2		0.65 in	8.13 mm	0.32 in	16.51 mm
Sullins Connector Solutions PTC01SGAN	Male Pin	1	Black	Solder	Through Hole Right Angle	UL94 V-0	3 A	0.14 in	3.56 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.318 "				Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	1			3.05 mm	0.12 in		8.08 mm
Sullins Connector Solutions PTC01DBAN	Male Pin	2	Black	Solder	Through Hole Right Angle	UL94 V-0	3 A	0.24 in	6.1 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2			3.05 mm	0.12 in
Sullins Connector Solutions PTC01DBCN	Male Pin	2	Black	Solder	Through Hole Right Angle	UL94 V-0	3 A	0.24 in	6.1 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2			8.13 mm	0.32 in
Sullins Connector Solutions PTC01SAHN	Male Pin	1	Black	Solder	Through Hole	UL94 V-0	3 A	0.1 in	2.54 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm			Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	1	1.15 in	29.21 mm	20.83 mm	0.82 in
Sullins Connector Solutions PTC01DAAN	Male Pin	2	Black	Solder	Through Hole	UL94 V-0	3 A	0.1 in	2.54 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2	0.45 "	11.43 mm	3.05 mm	0.12 in
Sullins Connector Solutions PTC01DAGN	Male Pin	2	Black	Solder	Through Hole	UL94 V-0	3 A	0.1 in	2.54 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2	1.05 in	26.67 mm	18.29 mm	0.72 "
Sullins Connector Solutions PTC01DADN	Male Pin	2	Black	Solder	Through Hole	UL94 V-0	3 A	0.1 in	2.54 mm	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable			0.23 in	5.84 mm	2.54 mm	0.1 in	Copper Alloy	Tin	All	Header	2.54 çm	100 çin	Square	Unshrouded	Push-Pull	2	0.75 in	19.05 mm	10.67 mm	0.42 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC01 Series

Connector Header Through Hole 1 position
