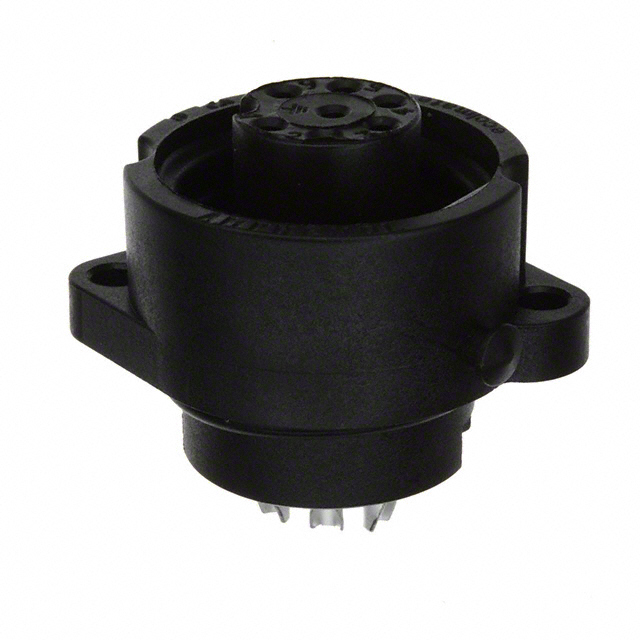

C01630G00620012
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 7POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C01630G00620012
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 7POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C01630G00620012 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 12 A |
| Ingress Protection | IP67, IP65 |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.54 | |
| 10 | $ 13.84 | |||
Description
General part information
C01630G006 Series
7 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
