0340910005
ActiveMolex

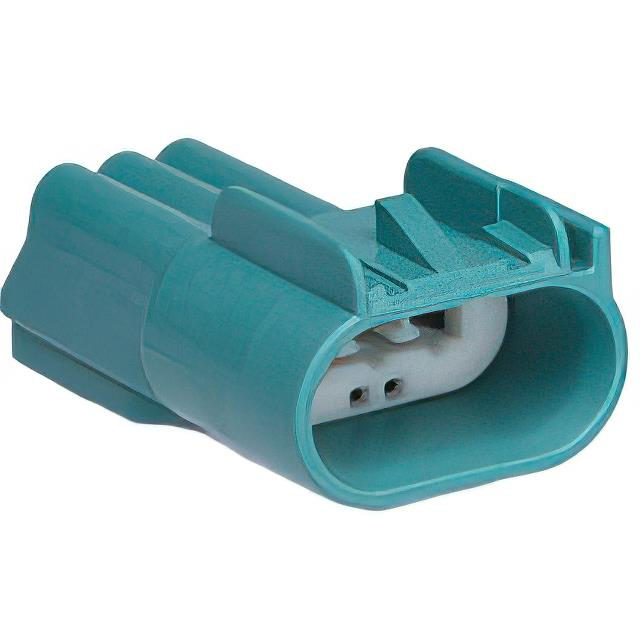

USCAR 3 WAY INLINE ASSY BLK KEY D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0340910005
ActiveMolex
USCAR 3 WAY INLINE ASSY BLK KEY D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0340910005 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Blade |
| Fastening Type | Locking Ramp |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.177 in |
| Pitch [x] | 4.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.40 | |||
| 2500 | $ 0.37 | |||
Description
General part information
034091 Series
3 Rectangular Connectors - Housings Plug Black 0.177" (4.50mm)
Documents
Technical documentation and resources
