C2405A.38.10

Active

Prysmian Group

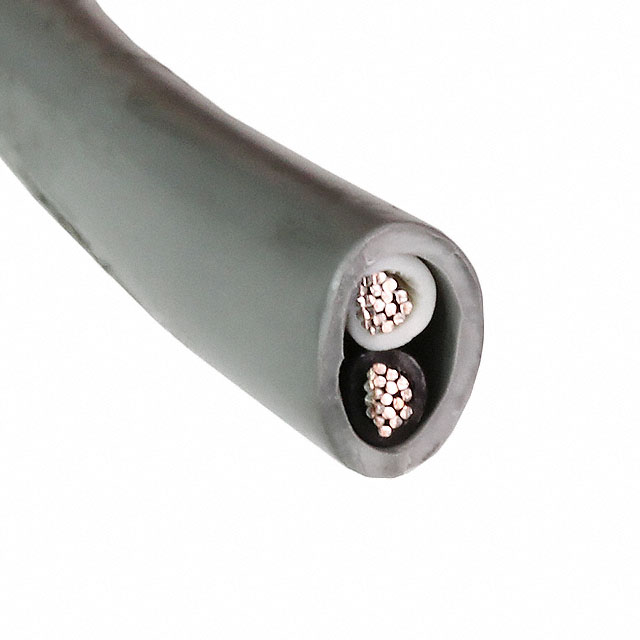

CABLE 2COND 16AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 16AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2405A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	0.268 in
Jacket (Insulation) Diameter [diameter]	6.81 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Conductor Insulation	Voltage	Conductor Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket Color	Length	Length
Prysmian Group C2405A.38.10	Multi-Conductor	19	0.0117 in	2	-20 C	90 °C	Communication Control	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	16 AWG	0.268 in	6.81 mm	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Gray
Prysmian Group C2405A.41.10	Multi-Conductor	19	0.0117 in	2	-20 C	90 °C	Communication Control	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	16 AWG	0.268 in	6.81 mm	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Gray	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.76

General part information

2 Conductor Multi-Conductor Cable Gray 16 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
