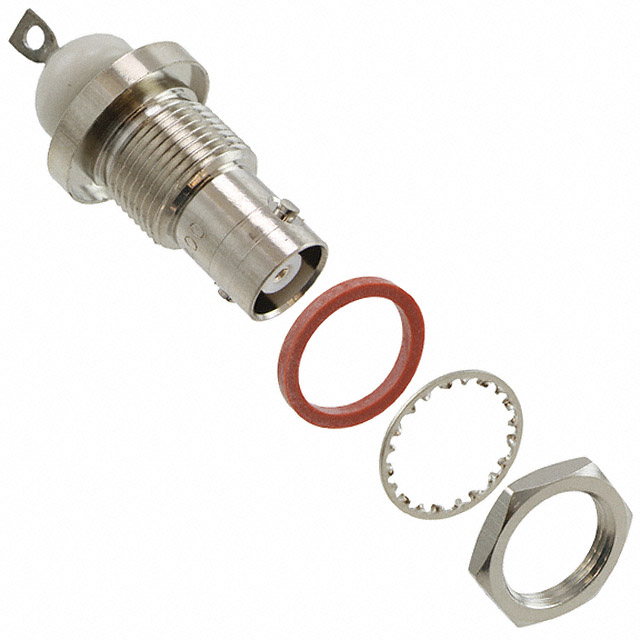

000-10400

Active

Amphenol RF

CONN MHV RCPT STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN MHV RCPT STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	000-10400

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	MHV
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Eyelet
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	5000 V

Part	Mounting Feature	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Connector Type	Ingress Protection	Fastening Type	Mating Cycles	Voltage Rating	Impedance	Connector Style	Housing Color	Contact Termination	Number of Ports	Dielectric Material	Center Contact Plating	Body Material	Features	Center Contact Material	Body Finish	Mounting Type
Amphenol RF 000-10400	Bulkhead - Front Side Nut	Solder	-65 ░C	165 °C	1 Connector 1 Lockwasher 1 Nut	Female Socket Receptacle	IP67 - Dust Tight Waterproof	Bayonet Lock	500	5000 V	Non-Constant	MHV	Silver	Solder Eyelet	1	Polytetrafluoroethylene (PTFE)	Silver	Brass	Extended Insulation	Beryllium Copper	Nickel
Amphenol RF 000-1075												SMA						Brass			Silver	Panel Mount Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MHV Connector Receptacle, Female Socket Non-Constant Panel Mount Solder Eyelet
