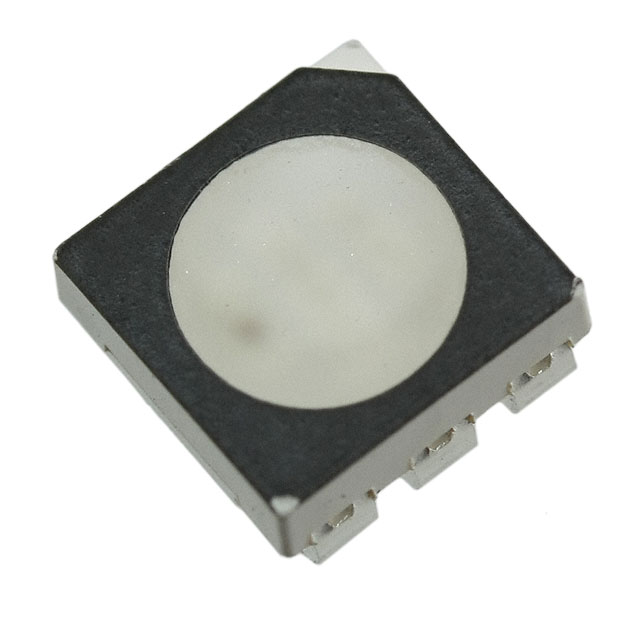

CLV6A-FKB-CK1P1G1BB7R3R3

Obsolete

Cree LED

LED RGB CLEAR 6PLCC SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED RGB CLEAR 6PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CLV6A-FKB-CK1P1G1BB7R3R3

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	2.1 mm
Lens Color	Colorless
Lens Size [diameter]	4.2 mm
Lens Transparency	Clear
Millicandela Rating [custom]	420 mcd
Millicandela Rating [custom]	840 mcd
Millicandela Rating [custom]	1680 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	5.5 mm
Size / Dimension [y]	5.5 mm
Supplier Device Package	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Wavelength - Dominant	530 nm, 621.5 nm, 470 nm

Part	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Size [diameter]	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Height (Max) [Max] [z]	Mounting Type	Configuration	Supplier Device Package	Lens Transparency	Package / Case	Color
Cree LED CLV6A-FKB-CK1P1G1BB7R3R3	20 mA	20 mA	20 mA	420 mcd	840 mcd	1680 mcd	470 nm 530 nm 621.5 nm	3.2 V	2 V	3.2 V	4.2 mm	5.5 mm	5.5 mm	Colorless	2.1 mm	Surface Mount	Independent	6-PLCC	Clear	6-SMD J-Lead	Blue Green Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 621.5nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue 6-SMD, J-Lead
