10-101971-203

Active

Amphenol Industrial Operations

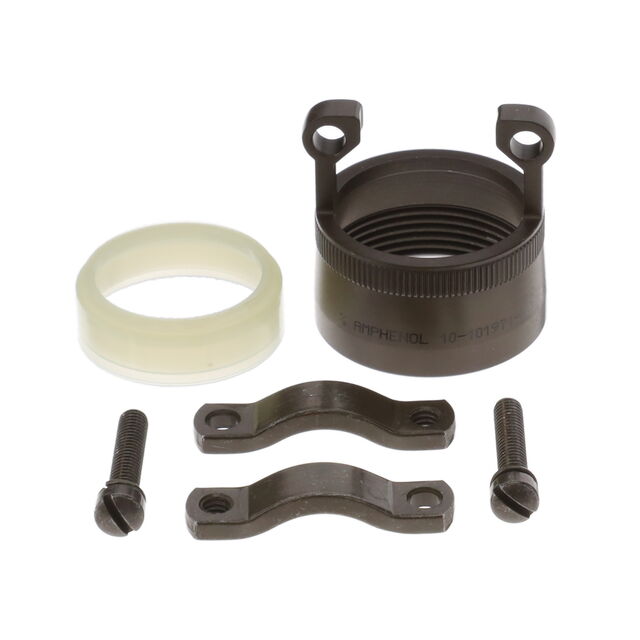

CONN CABLE CLAMP SZ20 OLIVE

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ20 OLIVE

Technical Specifications

Parameters and characteristics for this part

Specification	10-101971-203

Cable Exit	180 °
Cable Opening [diameter]	0.74 in
Cable Opening [diameter]	18.8 mm
Color	Olive
Diameter - Outside [diameter]	1.291 "
Diameter - Outside [diameter]	32.79 mm
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Class E Connectors
Ingress Protection	Environment Resistant
Plating	Cadmium
Shell Size - Insert	20
Type	Cable Clamp

Part	For Use With/Related Products	Type	Features	Cable Opening [custom]	Cable Opening [custom]	Color	Ingress Protection	Plating	Diameter - Outside	Diameter - Outside [diameter]	Shell Size - Insert	Cable Exit	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Industrial Operations 10-101971-163	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief	15.62 mm	0.615 in	Olive	Environment Resistant	Cadmium	26.59 mm	1.047 "	16	180 °
Amphenol Industrial Operations 10-101971-143	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief	14.02 mm	0.552 in	Olive	Environment Resistant	Cadmium			14	180 °
Amphenol Industrial Operations 10-101971-123	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief	10.87 mm	0.428 in	Olive	Environment Resistant	Cadmium		0.803 in	12	180 °	20.4 mm
Amphenol Industrial Operations 10-101971-203	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief			Olive	Environment Resistant	Cadmium		1.291 "	20	180 °	32.79 mm	0.74 in	18.8 mm
Amphenol Industrial Operations 10-101971-183	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief			Olive	Environment Resistant	Cadmium		1.165 in	18	180 °	29.59 mm	0.74 in	18.8 mm
Amphenol Industrial Operations 10-101971-103	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief	7.67 mm	0.302 in	Olive	Environment Resistant	Cadmium		0.675 "	10	180 °	17.15 mm
Amphenol Industrial Operations 10-101971-83	Class E Connectors	Cable Clamp	Clamp Screws Strain Relief			Olive	Environment Resistant	Cadmium		0.55 in	8	180 °	13.97 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Connector Cable Clamp 20
