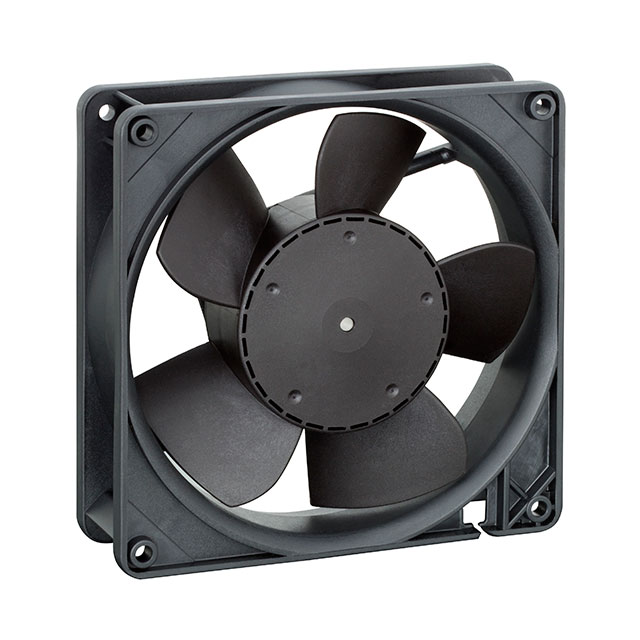

5214NH

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 12V TO 28V 148.3CFM 51DB 127 X 127 X 38MM HIGH SPEED

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 12V TO 28V 148.3CFM 51DB 127 X 127 X 38MM HIGH SPEED

Technical Specifications

Parameters and characteristics for this part

Part	Noise	Width [y]	Material - Blade	Termination	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Approval Agency	RPM	Material - Frame	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Lifetime @ Temp.	Power (Watts)	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Features	Operating Temperature [Max]
ebm-papst Inc. 5214NH	51 dB(A)	38 mm	Aluminum	2 Wire Leads	12 VDC	28 VDC	Ball	CE CSA UL VDE	3650 RPM	Aluminum	4.15 m³/min	148.3 CFM	127 mm	127 mm	24 VDC	45000 Hrs	9.8 W	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	309.8 g	0.683 lb
ebm-papst Inc. 5214N/2HH	58 dB(A)	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)	3 Wire Leads	16 VDC	30 V	Ball		4900 RPM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	5.68 mł/min	203 CFM	127 mm	127 mm	24 VDC	45000 Hrs	17.5 W	Tubeaxial	-20 °C		-20 C	65 °C	310.26 g	0.684 lb	Locked Rotor Protection Speed Sensor (Tach)	65 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 127mm L x 127mm H Ball 148.3 CFM (4.15m³/min) 2 Wire Leads
