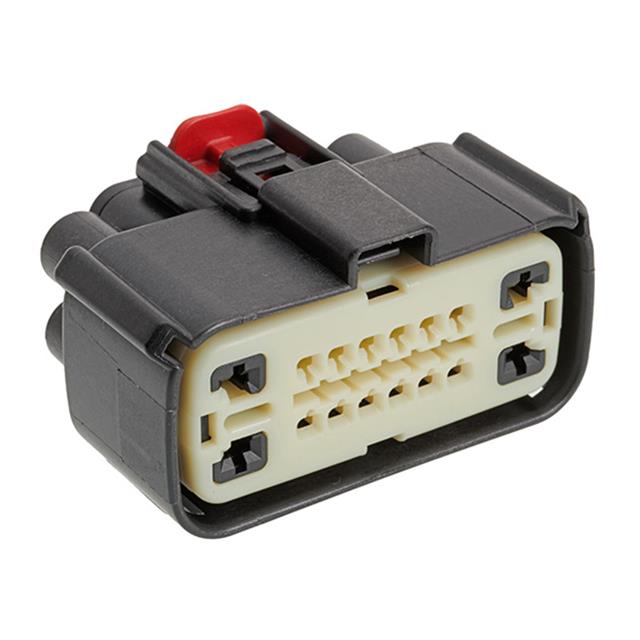

0349851849

Active

Molex

CONN RCPT HSG 16POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MX150 Series

0349851849

Active

Molex

CONN RCPT HSG 16POS

Deep-Dive with AI

DocumentsDatasheet MX150 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349851849

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Nylon, Syndiotatic Polystyrene (SPS), Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

034985 Series

Part	Number of Positions	Contact Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Fastening Type	Number of Rows	Connector Type	Note	Color	Contact Type	Features	Pitch [x]	Pitch [x]
Molex 0349851607	16	Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Latch Holder	2	Receptacle	Contacts Not Included	Gray	Female Socket	Connector Position Assurance (CPA) Sealed
Molex 0349852329	16	Crimp	Free Hanging (In-Line)				Latch Holder	2	Receptacle	Contacts Not Included	Gray	Female Socket	Connector Position Assurance (CPA) Sealed	3.5 mm	0.138 in
Molex 0349852160	16	Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Latch Holder	2	Receptacle	Contacts Not Included	Gray	Female Socket	Connector Position Assurance (CPA) Sealed
Molex 0349851849	16	Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Latch Holder	2	Receptacle	Contacts Not Included		Female Socket	Connector Position Assurance (CPA) Sealed
Molex 0349852157	16	Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Latch Holder	2	Receptacle	Contacts Not Included	Gray	Female Socket	Sealed
Molex 0349852121	16	Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Latch Holder	2	Receptacle	Contacts Not Included	Gray	Female Socket	Sealed
Molex 0349852184	16	Crimp	Free Hanging (In-Line)	125 °C	-40 °C	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Latch Holder	2	Receptacle	Contacts Not Included	Gray	Female Socket	Connector Position Assurance (CPA) Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.35
		10	$ 3.83
		100	$ 3.05
		1320	$ 2.52
		2640	$ 2.35

Description

General part information

034985 Series

16 Rectangular Connectors - Housings Receptacle

Documents

Technical documentation and resources

Datasheet

MX150 Series

Datasheet
