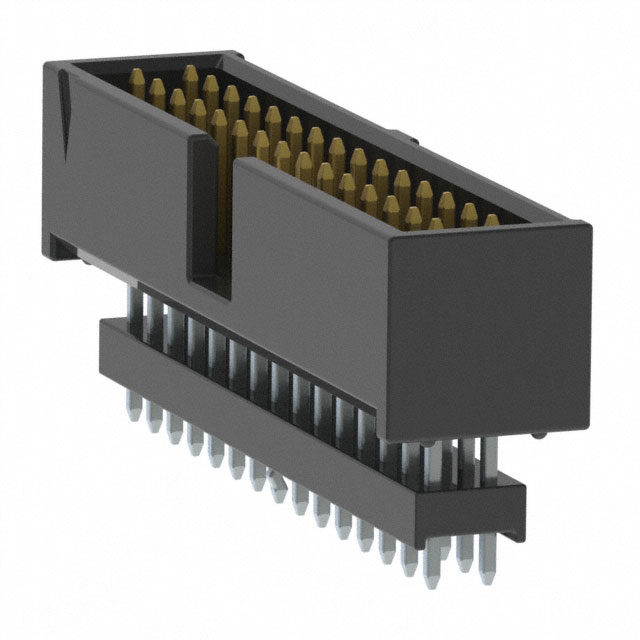

ZSS-115-01-L-D-504-LL

Active

Samtec Inc.

CONN ELEVATED SHROUDED HEADER HDR 30 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-115-01-L-D-504-LL

Active

Samtec Inc.

CONN ELEVATED SHROUDED HEADER HDR 30 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-115-01-L-D-504-LL

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length [x]	0.63 "
Overall Contact Length [x]	16 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

ZSS-115 Series

...

Part	Fastening Type	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Material Flammability Rating	Insulation Material	Style	Connector Type	Contact Type	Contact Shape	Termination	Contact Length - Mating	Contact Length - Mating	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions	Number of Rows	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Length - Post [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. ZSS-115-04-T-D-800	Push-Pull	0.93 in	23.62 mm	3 A	0.8 in	20.32 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	105 ░C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All	0.13 in	3.3 mm	Tin
Samtec Inc. ZSS-115-02-S-D-640
Samtec Inc. ZSS-115-01-S-D-515
Samtec Inc. ZSS-115-03-G-D-650
Samtec Inc. ZSS-115-05-L-D-927-LL
Samtec Inc. ZSS-115-03-T-D-664
Samtec Inc. ZSS-115-01-L-D-504-LL	Push-Pull			3 A	0.504 in	12.8 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Kinked Pin Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	125 °C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All		3.2 mm	Tin	0.126 in	0.63 "	16 mm	Gold	10 çin	0.25 çm
Samtec Inc. ZSS-115-05-S-D-865
Samtec Inc. ZSS-115-01-S-D-450	Push-Pull			3 A	0.45 in	11.43 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	125 °C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All	0.18 in	4.57 mm	Tin		0.63 "	16 mm	Gold	30 Áin	0.76 Ám
Samtec Inc. ZSS-115-07-L-D-1000	Push-Pull	1.23 in	31.24 mm	3 A	1 in	25.4 mm	Shrouded - 4 Wall	2.54 mm	0.1 in	Black	UL94 V-0	Polyester Glass Filled	Board to Board Cable	Elevated Header	Male Pin	Square	Solder	6.35 mm	0.25 in	Keying Slot	Phosphor Bronze	125 °C	-55 °C	0.1 in	2.54 mm	Through Hole	30	2	All	0.23 in	5.84 mm	Tin				Gold	10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.80
		25	$ 3.43
		50	$ 3.19
Digikey	Bulk	1	$ 3.80

Description

General part information

ZSS-115 Series

Connector Header Through Hole 30 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
