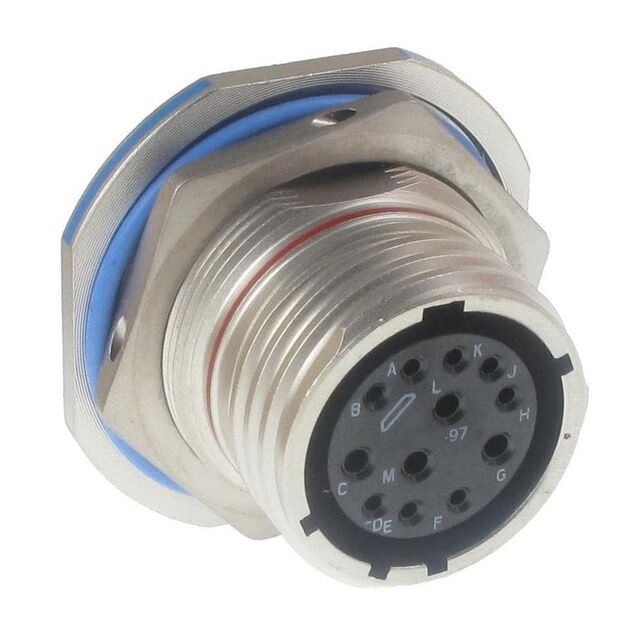

D38999/25YC98SN

Active

Glenair

CONNECTOR

Search across all available documentation for this part.

Active

Glenair

CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/25YC98SN

Applications	Military, Medical, Automotive, Aerospace
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Self Locking
Grade	Military
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Number of Positions	10
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999
Shell Finish	Passivated
Shell Material	Stainless Steel
Shell Size - Insert	13
Shell Size, MIL	C

Part	Grade	Insert Material	Shell Size, MIL	Shell Material	Number of Positions	Orientation	Shell Finish	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Material	Applications	Contact Finish - Mating	Ingress Protection	Connector Type	Qualification	Features
Glenair D38999/25YC98SN	Military	Thermoplastic	C	Stainless Steel	10	N	Passivated	13	-65 ░C	200 °C	Metal	Copper Alloy	Aerospace Automotive Medical Military	Gold	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	MIL-DTL-38999	Self Locking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4818.94

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources
