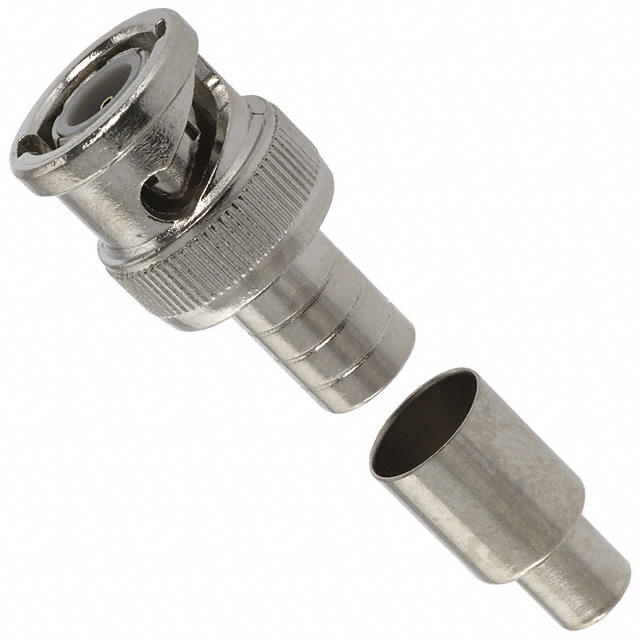

CP-88-4

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 50 OHM PUSH

Search across all available documentation for this part.

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 50 OHM PUSH

Technical Specifications

Parameters and characteristics for this part

Specification	CP-88-4

Body Finish	Nickel
Body Material	Zinc
Cable Group	RG-59-MATV
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Sleeve, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Voltage Rating	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Center Contact Plating	Includes	Mating Cycles	Contact Termination	Frequency - Max [Max]	Impedance	Fastening Type	Mounting Type	Shield Termination	Body Finish	Number of Ports	Dielectric Material	Connector Type	Center Contact Material	Body Material	Housing Color
Cinch Connectivity Solutions AIM-Cambridge CP-88-4	500 V	BNC	85 °C	-55 °C	RG-59-MATV	Gold	1 Connector 1 Sleeve	500	Push On	4 GHz	50 Ohms	Bayonet Lock	Free Hanging (In-Line)	Crimp	Nickel	1	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Brass	Zinc	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
