GSB311231HR
ActiveAmphenol ICC (Commercial Products)

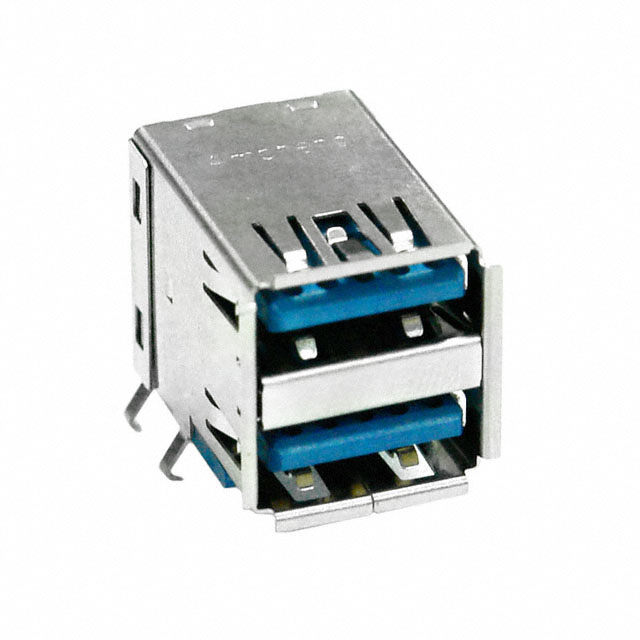

CONN RCPT USB3.0 A STACK PCB R/A
Deep-Dive with AI
Search across all available documentation for this part.
GSB311231HR
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB3.0 A STACK PCB R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GSB311231HR |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 0.25 A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 2 |
| Shell/Shielding Material | Stainless, Steel |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.87 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.47 | |||
| 40 | $ 2.41 | |||
| 100 | $ 2.29 | |||
| 300 | $ 2.01 | |||
| 500 | $ 1.95 | |||
| 1000 | $ 1.66 | |||
| 2400 | $ 1.55 | |||
Description
General part information
GSB31 Series
USB-A (USB TYPE-A), Stacked USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 18 Position Panel Mount, Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
