BLC9G20LS-120VZ

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1275-3

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V SOT1275-3

Technical Specifications

Parameters and characteristics for this part

Part	Frequency [Max]	Frequency [Min]	Voltage - Test	Gain	Current - Test	Package / Case	Configuration	Mounting Type	Power - Output	Supplier Device Package	Voltage - Rated	Current Rating (Amps)
Ampleon USA Inc. BLC9G15LS-400AVTZ	1511 MHz	1452 MHz	32 V	16.5 dBi	810 mA	SOT-1258-3	Common Source Dual	Chassis Mount	540 W	DFM6	65 V
Ampleon USA Inc. BLC9G27LS-151AVY	2.69 GHz	2.5 GHz	28 V	15.6 dB	280 mA	SOT-1275-3	Common Source Dual	Chassis Mount	155 W	SOT-1275-3	65 V
Ampleon USA Inc. BLC9G27XS-380AVTZ	2.69 GHz	2.496 GHz	30 V	15.5 dBi	600 mA	SOT-1258-7		Surface Mount	380 W	SOT-1258-7	65 V	2.8 µA
Ampleon USA Inc. BLC9H10XS-600AZ	960 MHz	616 MHz	48 V	17.7 dB	600 mA	SOT1250-1	Common Source Dual	Surface Mount	600 W	SOT1250-1	105 V	1.4 µA
Ampleon USA Inc. BLC9H10XS-500AY	960 MHz	617 MHz	50 V	18.9 dB		SOT-1273-1	2 N-Channel (Dual) Common Source	Surface Mount	500 W	SOT1273-1	105 V	1.4 µA
Ampleon USA Inc. BLC9G20XS-400AVTZ	1.88 GHz	1.81 GHz	32 V	16.2 dB	800 mA	SOT-1258-4	Common Source Dual	Surface Mount	570 W	SOT1258-4	65 V
Ampleon USA Inc. BLC9G20LS-120VZ	1.88 GHz	1.81 GHz	28 V	19.2 dB	700 mA	SOT-1275-3		Chassis Mount	120 W	SOT-1275-3	65 V
Ampleon USA Inc. BLC9G27LS-151AVZ	2.69 GHz	2.5 GHz	28 V	15.6 dB	280 mA	SOT-1258-3	Common Source Dual	Chassis Mount	155 W	DFM6	65 V
Ampleon USA Inc. BLC9G20XS-400AVTY	1.93 GHz	1.88 GHz	32 V	16.2 dB	800 mA	SOT-1258-7			570 W	SOT-1258-7	65 V	2.8 µA
Ampleon USA Inc. BLC9G20XS-550AVTY	1.88 GHz	1.805 GHz	28 V	15.4 dB	1.1 A	SOT-1258-7			580 W	SOT-1258-7	65 V	2.8 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

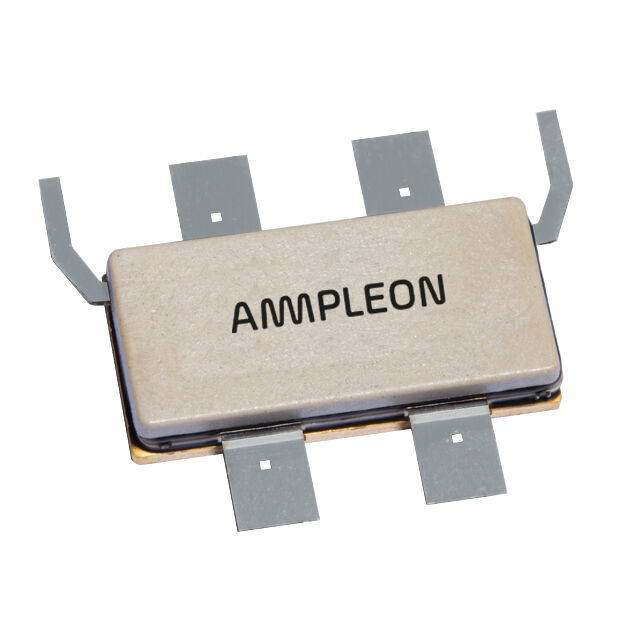

RF Mosfet 28 V 700 mA 1.81GHz ~ 1.88GHz 19.2dB 120W SOT-1275-3
