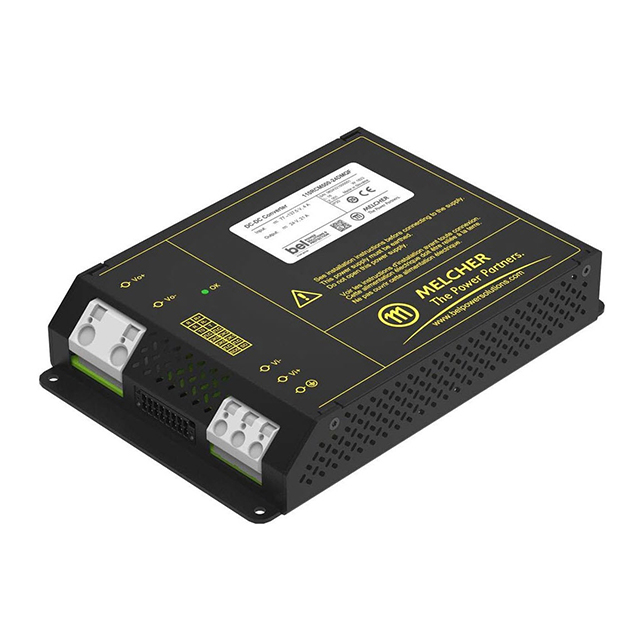

110RCM1000-24
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 24V 1000W
Deep-Dive with AI
Search across all available documentation for this part.
110RCM1000-24
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 24V 1000W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 110RCM1000-24 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 42 A |
| Efficiency | 96 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 8.23 " |
| Size / Dimension [x] | 209 mm |
| Size / Dimension [y] | 141 mm |
| Size / Dimension [y] | 5.55 in |
| Size / Dimension [z] | 1.87 " |
| Size / Dimension [z] | 47.4 mm |
| Type | Conformal Coated, Enclosed |
| Voltage - Input (Max) [Max] | 137.5 V |
| Voltage - Input (Min) [Min] | 77 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 761.54 | |
| 10 | $ 735.28 | |||
Description
General part information
110RCM1000 Series
Enclosed, Conformal Coated DC DC Converter 1 Output 24V 42A 137.5V Input
Documents
Technical documentation and resources
No documents available
