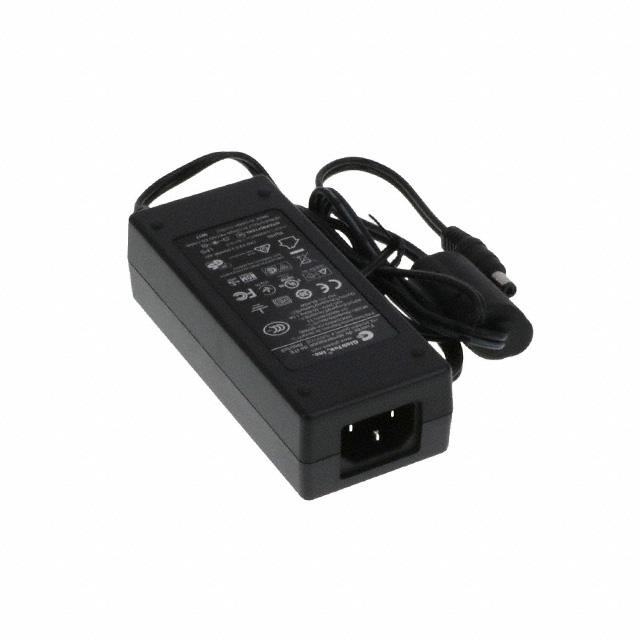

TR9CG4000LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 15V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 15V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CG4000LCP-N(R6B)

Applications	Household Appliances, ITE (Commercial)
Approval Agency	BSMI, CE, UKRSepro, CCC, VCCI, GS, NOM, cULus, LPS, EAC, CB, PSE, RCM, FCC, BSI
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	4 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.76 "
Size / Dimension [x]	121 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Standard Number	60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Input Connector	Power (Watts)	Applications	No Load Power Consumption [Max]	Standard Number	Voltage - Output	Cord Length	Cord Length	Approval Agency	Region Utilized	Input Type	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Polarization	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Output Connector	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. TR9CG4000LCP-N(R6B)	IEC 320-C14	60 W	Household Appliances ITE (Commercial)	150 mW	60335-1 60950-1	15 VDC	1.2 m	47.2 in	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI	International	Cord	4 A	90 VAC	264 VAC	Desktop (Class I)	Positive Center	Level VI	40 °C	0 °C	52 mm	4.76 "	2.05 in	121 mm	1.3 "	33 mm	Barrel Plug	2.5 mm 5.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
