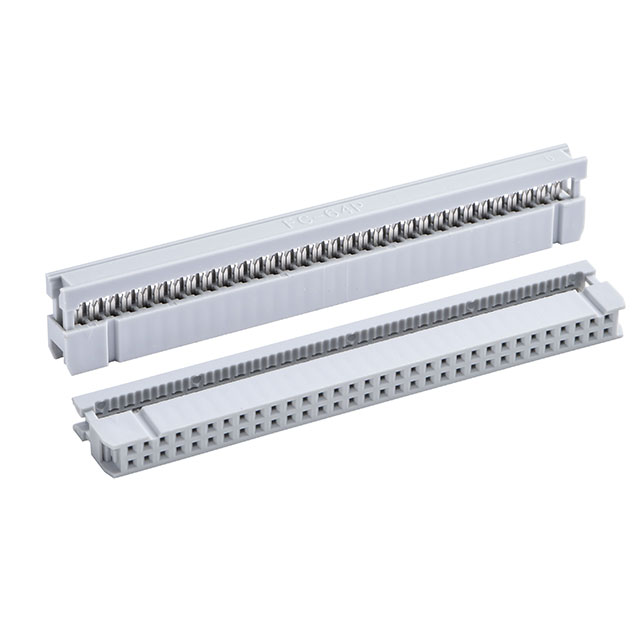

AWP 64-8540-T

Active

Assmann WSW Components

CONN SOCKET 64POS IDC TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET 64POS IDC TIN

Technical Specifications

Parameters and characteristics for this part

Part	Color	Mounting Type	Cable Termination	Wire Type	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Contact Type	Features	Contact Finish	Connector Type	Number of Rows	Contact Finish Thickness
Assmann WSW Components AWP 64-8540-T	Gray	Free Hanging (In-Line)	IDC	Ribbon Cable	64	2.54 mm	0.1 in	0.1 in	2.54 mm	Female Socket	Feed Through	Tin	Socket	2
Assmann WSW Components AWP64-8541-T-R	Gray	Free Hanging (In-Line)	IDC	Ribbon Cable	64	2.54 mm	0.1 in	0.1 in	2.54 mm	Female Socket	Feed Through Strain Relief	Tin	Socket	2
Assmann WSW Components AWP64-7541-T-R	Gray	Free Hanging (In-Line)	IDC	Ribbon Cable	64	2.54 mm	0.1 in	0.1 in	2.54 mm	Female Socket	Feed Through Polarizing Key Strain Relief	Tin	Socket	2
Assmann WSW Components AWP64-7240-T-R	Gray	Free Hanging (In-Line)	IDC	Ribbon Cable	64	2.54 mm	0.1 in	0.1 in	2.54 mm	Female Socket	Feed Through Polarizing Key	Gold	Socket	2	Flash
Assmann WSW Components AWP64-8241-T-R	Gray	Free Hanging (In-Line)	IDC	Ribbon Cable	64	2.54 mm	0.1 in	0.1 in	2.54 mm	Female Socket	Feed Through Strain Relief	Gold	Socket	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	36	$ 1.12

General part information

64 Position Rectangular Socket Connector IDC Tin
