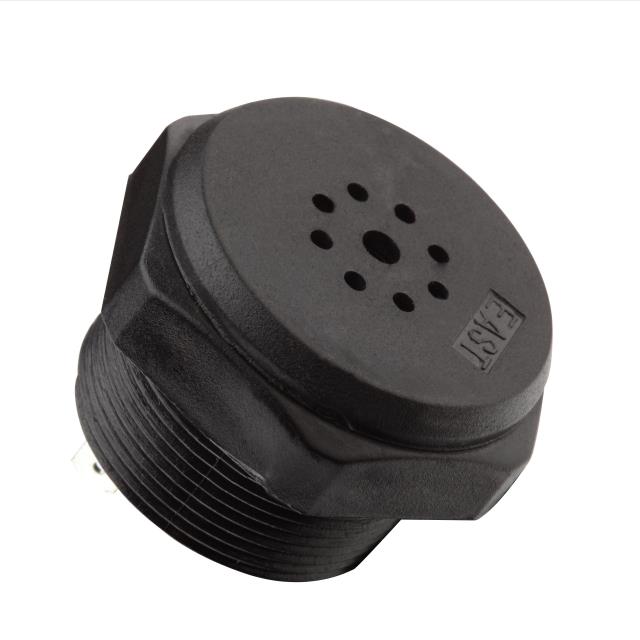

FM-12H-900
ActiveEast Electronics
BUZZER 12V 36.5MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM-12H-900
ActiveEast Electronics
BUZZER 12V 36.5MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM-12H-900 |
|---|---|
| Current - Supply | 10 mA |
| Frequency | 3 kHz |
| Height - Seated (Max) [Max] [z] | 26 mm |
| Height - Seated (Max) [Max] [z] | 1.024 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.437 in |
| Size / Dimension [diameter] | 36.5 mm |
| Sound Pressure Level (SPL) | 90 dB |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.68 | |
| 100 | $ 3.75 | |||
| 1000 | $ 3.07 | |||
Description
General part information
FM-12H Series
Buzzers 12 V 10mA 3kHz 90dB @ 12V, 30cm Through Hole PC Pins
