BM02B-XASS-TF

Active

JST Sales America Inc.

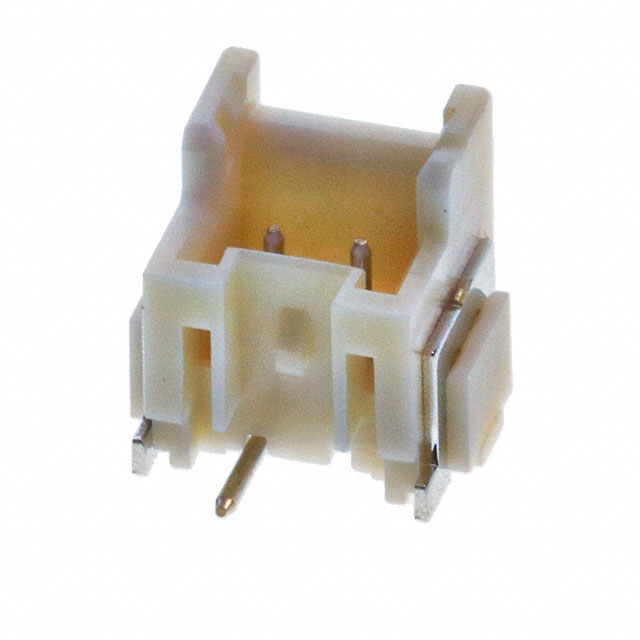

CONN HEADER SMD 2POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM02B-XASS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Style	Shrouding	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Contact Material	Current Rating (Amps)	Voltage Rating	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Insulation Color	Number of Positions Loaded	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Features	Mounting Type	Termination	Number of Rows
JST Sales America Inc. BM02B-XASS-TF	Board to Cable/Wire	Shrouded - 4 Wall	11.9 mm	-25 °C	85 °C	2	Header	Copper Alloy	3 A	250 VDC	Locking Ramp	Circular	0.37 in	9.4 mm	UL94 V-0	Nylon Polyamide (PA)	Natural	All	Male Pin	Tin	2.5 mm	0.098 in	Solder Retention	Surface Mount	Solder	1
