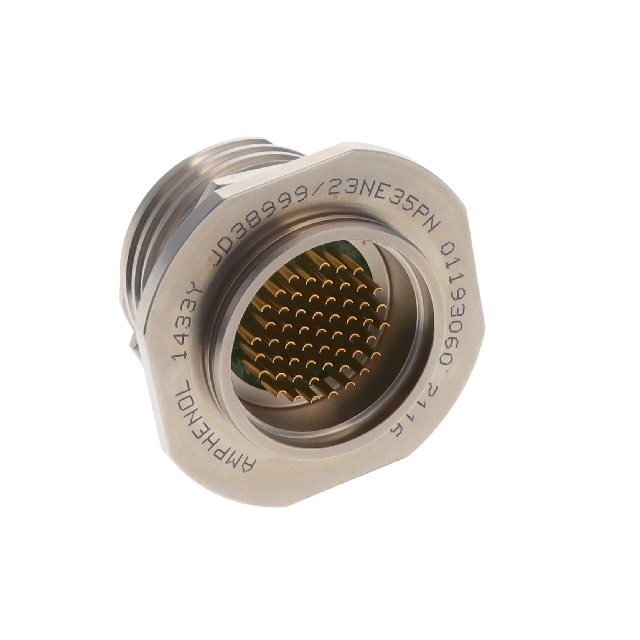

D38999/23NE35PN

Active

Amphenol Aerospace Operations

HERMETIC CIRCULAR MIL-SPEC CONNE

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

HERMETIC CIRCULAR MIL-SPEC CONNE

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/23NE35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	55 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Nickel
Shell Material	Stainless Steel
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Unshielded
Voltage Rating	400 VAC, 500 V

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Shell Finish	Contact Finish - Mating	Contact Material	Shell Material	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Applications	Mounting Feature	Color	Primary Material	Shell Size, MIL	Number of Positions	Shielding	Orientation	Qualification	Connector Type
Amphenol Aerospace Operations D38999/23NE35PN	1.27 µm	50 µin	400 VAC 500 V	Nickel	Gold	Copper Alloy	Stainless Steel	Military	-65 ░C	200 °C	17	35	Aerospace Aviation Marine Military	Bulkhead - Front Side Nut	Silver	Metal	E	55 positions	Unshielded	N	MIL-DTL-38999 Series III	Male Pins Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Position Circular Connector Receptacle, Male Pins Solder Cup
