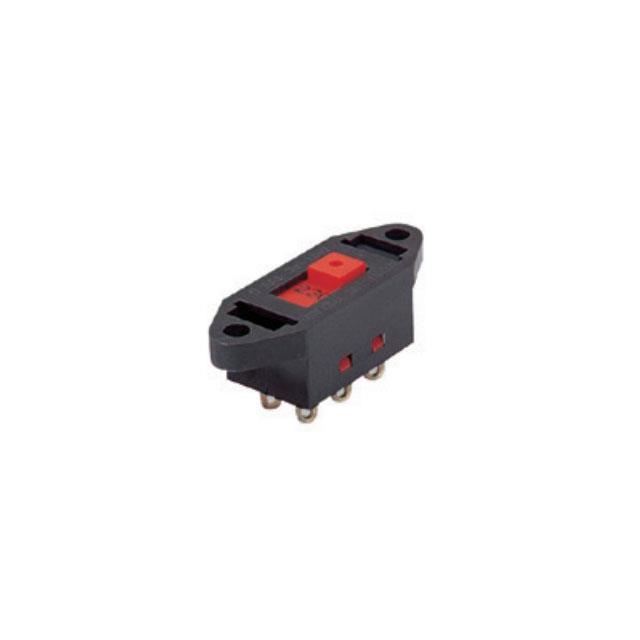

T22205BB-437W
ActiveBULGIN LIMITED
SWITCH SLIDE DPDT 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T22205BB-437W
ActiveBULGIN LIMITED
SWITCH SLIDE DPDT 16A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T22205BB-437W |
|---|---|
| Actuator Length [x] | 1 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Features [Max] | 230 V |
| Features [Min] | 115 V |
| Switch Function | On-On (Line Voltage Selector) |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 3.70 | |
Description
General part information
T22205B Series
Slide Switch DPDT Panel Mount
