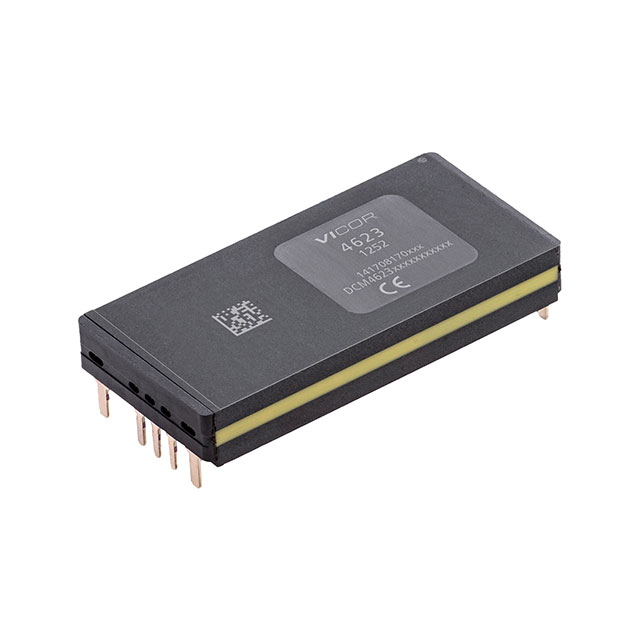

DCM300P138M500A40

Active

Vicor Corporation

DC DC CONVERTER 13.8V 500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DCM300P138M500A40

Active

Vicor Corporation

DC DC CONVERTER 13.8V 500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCM300P138M500A40

Applications	ITE (Commercial)
Current - Output (Max) [Max]	36.3 A
Efficiency	93.2 %
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	9-DIP Module
Power (Watts)	500 W
Size / Dimension [x]	1.89 in
Size / Dimension [x]	47.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.8 mm
Size / Dimension [z]	0.29 "
Size / Dimension [z]	7.3 mm
Type	Isolated Module
Voltage - Input (Min) [Min]	200 V
Voltage - Isolation	4.242 kV
Voltage - Output 1	13.8 V

DCM300 Series

Part	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Mounting Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Number of Outputs	Type	Efficiency	Voltage - Isolation
Vicor Corporation DCM300P120M400A40	ITE (Commercial)	180 V	400 W	9-DIP Module	Through Hole	12 V	-55 °C	125 °C	OCP OTP OVP SCP UVLO	1.89 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.9 mm	33.4 A	1	Isolated Module	93.8 %	4.242 kV
Vicor Corporation DCM300P280M500A40	ITE (Commercial)	200 V	500 W	9-DIP Module	Through Hole	28 V	-55 °C	125 °C	OCP OTP OVP SCP UVLO	1.89 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.9 mm	17.86 A	1	Isolated Module	93.7 %	4.242 kV
Vicor Corporation DCM300P138M500A40	ITE (Commercial)	200 V	500 W	9-DIP Module	Through Hole	13.8 V	-55 °C	125 °C	OCP OTP OVP SCP UVLO	1.89 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.9 mm	36.3 A	1	Isolated Module	93.2 %	4.242 kV
Vicor Corporation DCM300P240T600A40	ITE (Commercial)	200 V	600 W	9-DIP Module	Through Hole	24 V	-40 °C	125 °C	OCP OTP OVP Remote On/Off SCP UVLO	1.88 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.7 mm	25 A	1	Isolated Module	93.2 %	4.242 kV
Vicor Corporation DCM300P240M600A40	ITE (Commercial)	200 V	600 W	9-DIP Module	Through Hole	24 V	-55 °C	125 °C	OCP OTP OVP SCP UVLO	1.89 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.9 mm	25 A	1	Isolated Module	93.6 %	4.242 kV
Vicor Corporation DCM300P480M500A40	ITE (Commercial)	200 V	500 W	9-DIP Module	Through Hole	48 V	-55 °C	125 °C	OCP OTP OVP SCP UVLO	1.89 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.9 mm	10.5 A	1	Isolated Module	93.5 %	4.242 kV
Vicor Corporation DCM300P480T500A40	ITE (Commercial)	200 V	500 W	9-DIP Module	Through Hole	48 V	-40 °C	125 °C	OCP OVP UVLO							10.5 A	1	Isolated Module	93.5 %	4.242 kV
Vicor Corporation DCM300P138T500A40	ITE (Commercial)	200 V	500 W	9-DIP Module	Through Hole	13.8 V	-40 °C	125 °C	OCP OTP OVP SCP UVLO	1.89 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.9 mm	36.3 A	1	Isolated Module	93.2 %	4.242 kV
Vicor Corporation DCM300P120T400A40	ITE (Commercial)	200 V	400 W	9-DIP Module	Through Hole	12 V	-40 °C	125 °C	OCP OTP OVP Remote On/Off SCP UVLO	1.88 in	0.9 "	0.29 "	22.8 mm	7.3 mm	47.7 mm	33.33 A	1	Isolated Module		4.242 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 474.01

Description

General part information

DCM300 Series

Isolated Module DC DC Converter 1 Output 13.8V 36.3A 200V - 420V Input
