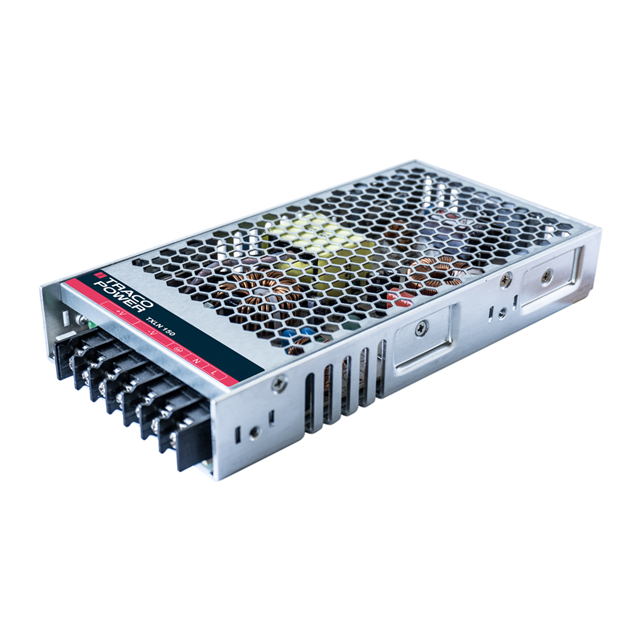

TXLN 150-112
ActiveTraco Power
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
TXLN 150-112
ActiveTraco Power
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TXLN 150-112 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 12.5 A |
| Efficiency | 88 % |
| Features | Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 7.4 " |
| Size / Dimension [x] | 188 mm |
| Size / Dimension [y] | 3.9 in |
| Size / Dimension [y] | 99 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 375 VDC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 78.00 | |
| 10 | $ 60.01 | |||
Description
General part information
TXLN 150 Series
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 375 VDC Input
