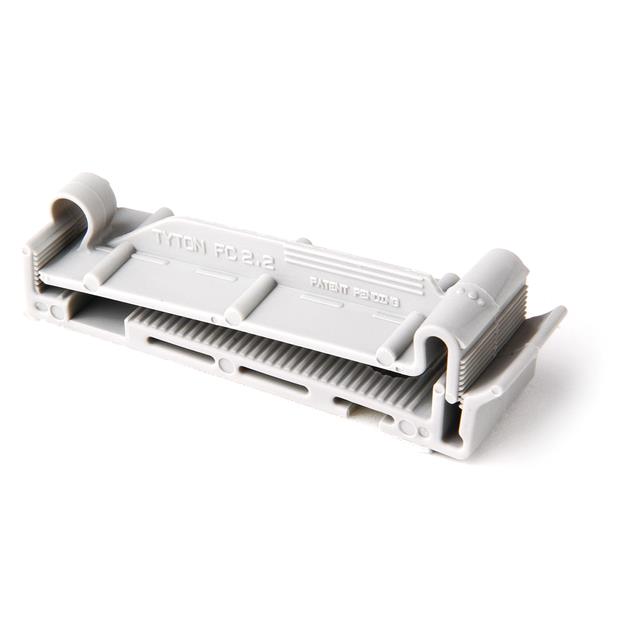

FC2.2AH4

Active

HELLERMANNTYTON

CBL CLIP FLAT ADHESIVE FASTENER

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP FLAT ADHESIVE FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	FC2.2AH4

Adhesive	Acrylate, Polyurethane Based
Color	Gray
Height [Max] [z]	0.66 in
Height [Max] [z]	16.76 mm
Height [Min] [z]	12.95 mm
Height [Min] [z]	0.51 in
Length	2.61 in
Length	66.29 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener, Adhesive
Opening Size [custom]	55.88 mm
Opening Size [custom]	2.2 in
Screw Size	0.157 in
Screw Size	4 mm
Type	Flat, Clip
Type Attributes	Hinged, Top Lock
Width [y]	0.75 in
Width [y]	19.05 mm

Part	Color	Type	Width [y]	Width [y]	Height [Max] [z]	Height [Min] [z]	Height [Max] [z]	Height [Min] [z]	Material	Length	Length	Mounting Type	Opening Size [custom]	Opening Size [custom]	Material Flammability Rating	Adhesive	Screw Size	Screw Size	Type Attributes
HELLERMANNTYTON FC2.2AH4	Gray	Clip Flat	0.75 in	19.05 mm	0.66 in	12.95 mm	16.76 mm	0.51 in	Polyamide (PA66) Nylon 6/6	2.61 in	66.29 mm	Adhesive Fastener	55.88 mm	2.2 in	UL94 V-2	Acrylate Polyurethane Based	0.157 in	4 mm	Hinged Top Lock
