SNJ54AC373FK
ActiveOCTAL D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS
Deep-Dive with AI
Search across all available documentation for this part.
SNJ54AC373FK
ActiveOCTAL D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SNJ54AC373FK |
|---|---|
| Circuit [custom] | 8 |
| Circuit [custom] | 8 |
| Current - Output High, Low | 24 mA |
| Delay Time - Propagation | 7.5 ns |
| Independent Circuits | 1 |
| Logic Type | D-Type Transparent Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | Tri-State, Non-Inverted |

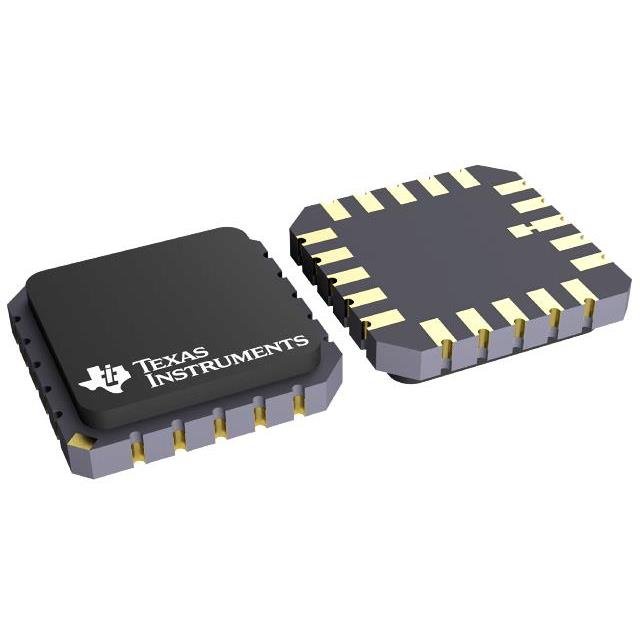

| Package / Case | 20-CLCC |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Texas Instruments | TUBE | 1 | $ 21.80 | |
| 100 | $ 19.04 | |||
| 250 | $ 14.68 | |||
| 1000 | $ 13.13 | |||
Description
General part information
5962-87555012 Series
These 8-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
These 8-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
