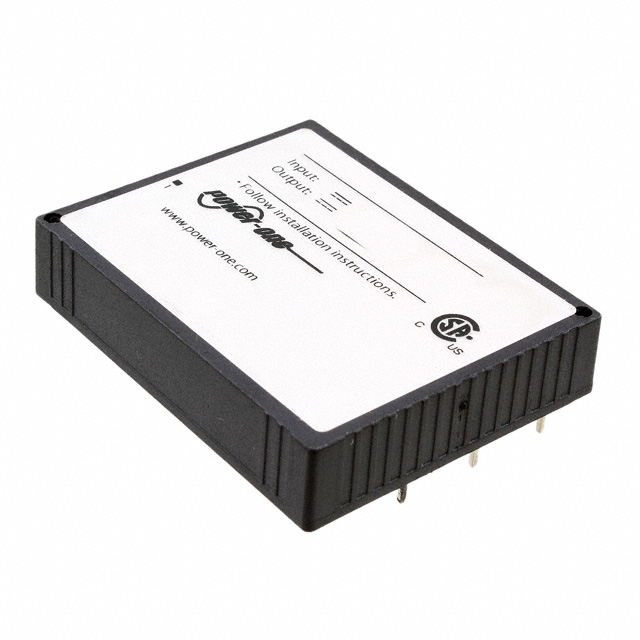

40IMX15-03-8RG

Active

EOS Power India Private Ltd

DC DC CONVERTER 3.3V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

40IMX15-03-8RG

Active

EOS Power India Private Ltd

DC DC CONVERTER 3.3V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	40IMX15-03-8RG

Applications	ITE (Commercial)
Current - Output (Max) [Max]	4.5 A
Efficiency	83 %
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	11 Leads
Package / Case	17-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	40.6 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.41 "
Type	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	16.8 V
Voltage - Isolation	2.1 kV
Voltage - Output 1	3.3 V

40IMX15 Series

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Type	Voltage - Isolation	Mounting Type	Number of Outputs	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Max) [Max]	Efficiency	Applications	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Min]
EOS Power India Private Ltd 40IMX15-12-12-8G	OCP OTP OVP SCP UVLO	85 °C	-40 °C	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	2	12 V	16.8 V	11 Leads	17-DIP Module	12 V	700 mA	700 mA	75 V	88 %	ITE (Commercial) Railway
EOS Power India Private Ltd 40IMX15-03-8RG	OCP OTP OVP SCP UVLO	85 °C	-40 °C	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	1	3.3 V	16.8 V	11 Leads	17-DIP Module				75 V	83 %	ITE (Commercial)	4.5 A
EOS Power India Private Ltd 40IMX15-05-8RG	OCP OTP OVP SCP UVLO	85 °C	-40 °C	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	1	5.1 V	16.8 V	11 Leads	17-DIP Module				75 V	87 %	ITE (Commercial) Railway	3.5 A
EOS Power India Private Ltd 40IMX15-0503-8R	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	0.41 "	1.61 in		50.8 mm			13 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	2	5.1 V	16.8 V		17-DIP Module 9 Leads	3.3 V	1.5 A	1.5 A	75 V	84 %	ITE (Commercial) Railway		40.9 mm	50.8 mm	10.4 mm
EOS Power India Private Ltd 40IMX15-05-8RG-G	OCP OTP OVP SCP UVLO	85 °C	-40 °C	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	1	5.1 V	16.8 V	11 Leads	17-DIP Module				75 V	87 %	ITE (Commercial) Railway	3.5 A
EOS Power India Private Ltd 40IMX15-24-24-8ZG	OCP OTP OVP SCP UVLO	85 °C	-40 °C							15 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	2	24 V	16.8 V		17-DIP Module 9 Leads	24 V			75 V	86 %		350 mA				350 mA
EOS Power India Private Ltd 40IMX15-24-24-8G	OCP OTP OVP SCP UVLO	85 °C	-40 °C	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 W	Conformal Coated Isolated Module	2.1 kV	Through Hole	2	24 V	16.8 V	11 Leads	17-DIP Module	24 V			75 V	86 %	ITE (Commercial) Railway	350 mA				350 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 158.05
		5	$ 152.16
		12	$ 149.03
		36	$ 145.20
		60	$ 143.45

Description

General part information

40IMX15 Series

Isolated Module, Conformal Coated DC DC Converter 1 Output 3.3V 4.5A 16.8V - 75V Input
