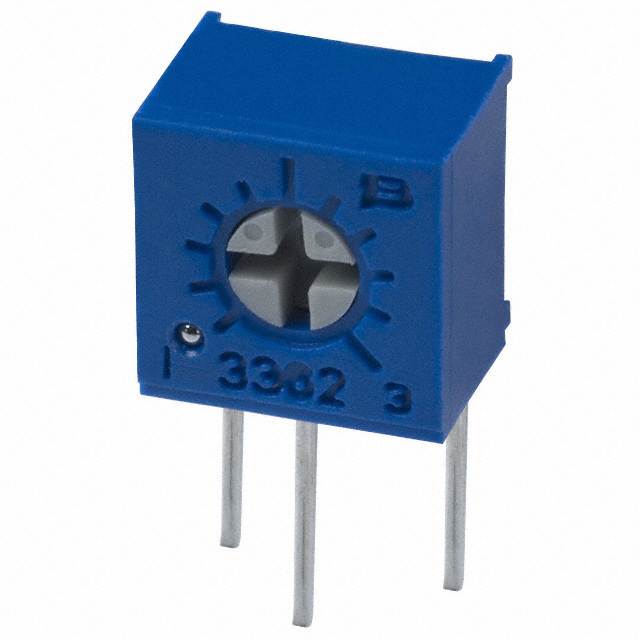

3362X-1-504

Active

Bourns Inc.

TRIMMER 500KOHM 0.5W PC PIN SIDE

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 500KOHM 0.5W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Resistance	Mounting Type	Adjustment Type	Tolerance	Termination Style	Resistive Material	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)
Bourns Inc. 3362X-1-104	1	100 kOhms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-254LF	1	250 kOhms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-202LF	1	2 kOhms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-182LF	1	1.8 kOhms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-204LF	1	200000 Ohms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-104LF	1	100 kOhms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-503	1	50 kOhms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-500LF	1	50 Ohms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-504	1		Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W
Bourns Inc. 3362X-1-102	1	1000 Ohms	Through Hole	Side Adjustment	10 %	PC Pins	Cermet	100 ppm/°C	6.6 mm	0.275 in	6.99 mm	0.26 "	0.5 W	0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 1.43

General part information

500 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
