2254 SL002

Active

ALPHA WIRE

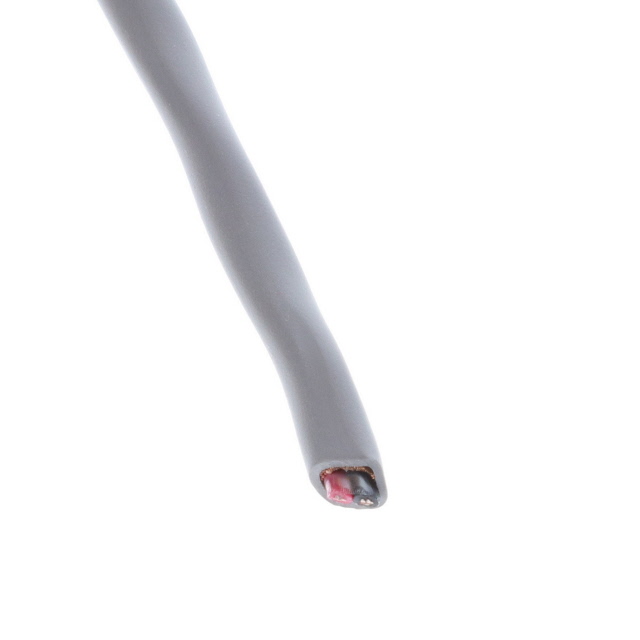

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 500 FT, 152.4 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics for this part

Specification	2254 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Spiral
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Length [x]	Length [x]	Number of Conductors	Shield Type	Shield Material	Conductor Insulation	Shield Coverage	Jacket (Insulation) Material	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Cable Type	Length	Length
ALPHA WIRE 2254 SL002	500 '	152.4 m	2	Spiral	Copper Bare	Poly-Vinyl Chloride (PVC)	95 %	Poly-Vinyl Chloride (PVC)	22 AWG	300 V	7	30 AWG	Copper Tinned	Communication Control	0.02 in	0.508 mm	-20 C	80 C	Slate	Multi-Conductor
ALPHA WIRE 2254 SL001			2	Spiral	Copper Bare	Poly-Vinyl Chloride (PVC)	95 %	Poly-Vinyl Chloride (PVC)	22 AWG	300 V	7	30 AWG	Copper Tinned	Communication Control	0.02 in	0.508 mm	-20 C	80 C	Slate	Multi-Conductor	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 572.71
Newark	Spool of 500	1	$ 744.36

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG Spiral 500.0' (152.4m)
