MSLL12060-000
ActiveLaird-Signal Integrity Products

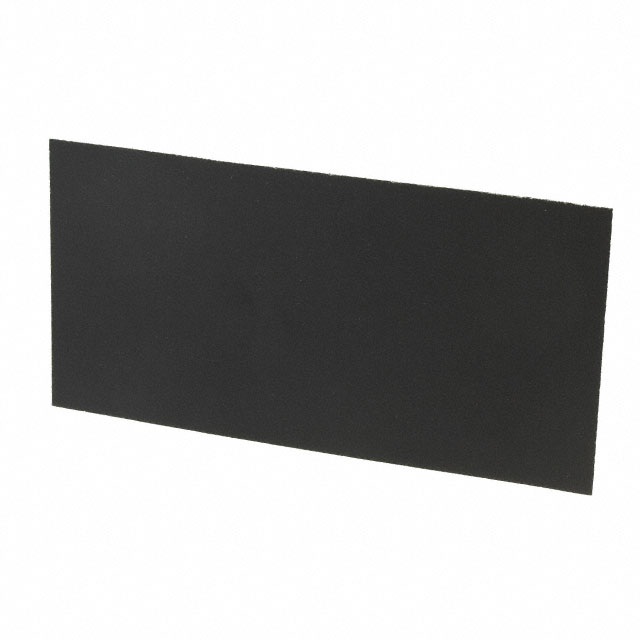

RF FERRITE SHEET 4.724"X2.362"
Deep-Dive with AI
Search across all available documentation for this part.
MSLL12060-000
ActiveLaird-Signal Integrity Products
RF FERRITE SHEET 4.724"X2.362"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSLL12060-000 |
|---|---|
| Adhesive | Single Sided, Non-Conductive |
| Length | 4.724 in |
| Length | 120 mm |
| Material | Rubber, PET Film, Ferrite Powder |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shape | Rectangular |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Shipment |
| Thickness - Overall | 0.014 in |
| Thickness - Overall | 0.35 mm |
| Type | Flexible Ferrite Sheet |
| Width [x] | 60 mm |
| Width [x] | 2.362 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.48 | |
| 10 | $ 10.30 | |||
| 25 | $ 8.60 | |||
| 50 | $ 7.77 | |||
Description
General part information
MSLL12060 Series
RF EMI Flexible Ferrite Sheet MSLL Rubber, Ferrite Powder, PET Film Non-Conductive, Single Sided 2.362" (60.00mm) X 4.724" (120.00mm) X 0.014" (0.35mm)
Documents
Technical documentation and resources
No documents available
