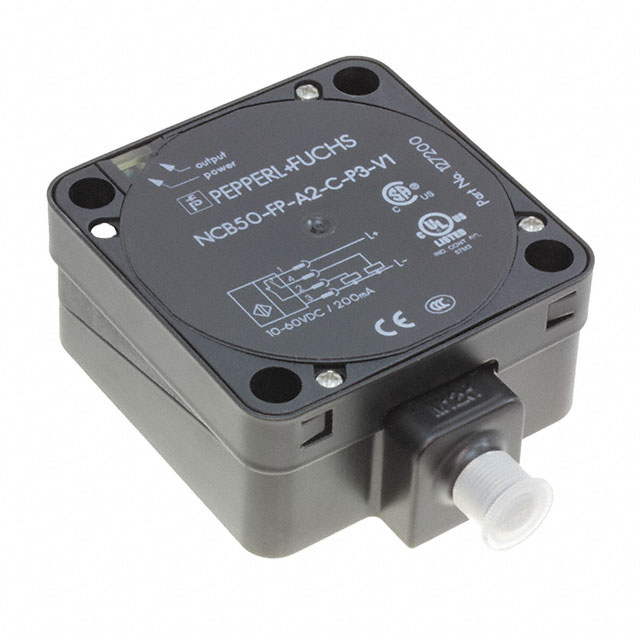

NCB50-FP-A2-C-P3-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, M12, 50 MM, PNP, 10 VDC TO 60 VDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, M12, 50 MM, PNP, 10 VDC TO 60 VDC

Technical Specifications

Parameters and characteristics for this part

Specification	NCB50-FP-A2-C-P3-V1

Indicator [custom]	LED
Ingress Protection	IP68
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	4-Wire, PNP-NC/NO
Package / Case	Module
Sensing Distance	50 mm
Sensing Distance	1.969 in
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	10 VDC

Part	Sensor Type	Sensing Distance	Sensing Distance	Shielding	Package / Case	Material - Body	Indicator [custom]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
PEPPERL+FUCHS NCB50-FP-A2-C-P3-V1	Inductive	50 mm	1.969 in	Unshielded	Module	Polybutylene Terephthalate (PBT)	LED	Connector	10 VDC	60 V	IP68	70 °C	-25 °C	4-Wire PNP-NC/NO
PEPPERL+FUCHS NCB50-FP-E2-P4	Inductive	50 mm	1.969 in	Unshielded	Module	Polybutylene Terephthalate (PBT)	LED		10 VDC	60 V	IP68	70 °C	-25 °C	PNP-NO 3-Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, M12, 50 MM, PNP, 10 VDC TO 60 VDC
