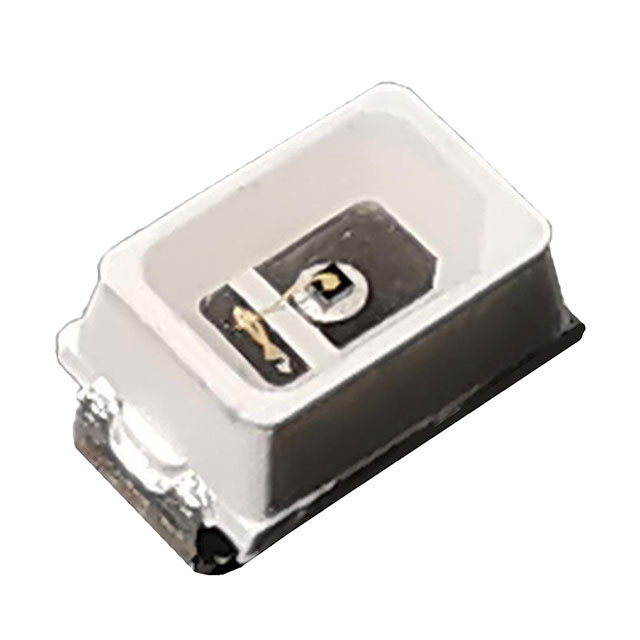

QBLP675-Y-2897

Active

QT Brightek (QTB)

LED YELLOW CLEAR 2PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP675-Y-2897

Active

QT Brightek (QTB)

LED YELLOW CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP675-Y-2897

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.3 mm
Lens Color	Colorless
Lens Size [x]	1.5 mm
Lens Size [y]	1 mm
Lens Style	Oval with Flat Top
Lens Transparency	Clear
Millicandela Rating	468 mcd
Mounting Type	Surface Mount
Package / Case	2-PLCC
Supplier Device Package	2-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm

QBLP675 Series

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Style	Height (Max) [Max] [z]	Lens Color	Viewing Angle	Color	Supplier Device Package	Package / Case	Mounting Type	Current - Test	Millicandela Rating	Configuration	Lens Size [x]	Lens Size [y]	Lens Transparency	Wavelength - Dominant [custom]
QT Brightek (QTB) QBLP675-AG	2 V	570 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Yellow-Green	2-PLCC	2-PLCC	Surface Mount	20 mA	51 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-S	2 V	640 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Red	2-PLCC	2-PLCC	Surface Mount	20 mA	119 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-Y-2897	2 V	590 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Yellow	2-PLCC	2-PLCC	Surface Mount	20 mA	468 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-O	2 V	605 nm	Oval with Flat Top	1.3 mm	Colorless	120 °		2-PLCC	2-PLCC	Surface Mount	20 mA	135 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-IG-2897	3.2 V	524 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Green	2-PLCC	2-PLCC	Surface Mount	20 mA	1120 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-Y	2 V	587 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Yellow	2-PLCC	2-PLCC	Surface Mount	20 mA	122 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-IB-2897	2.9 V	467 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Blue	2-PLCC	2-PLCC	Surface Mount	20 mA	250 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-IG	3.2 V	522 nm	Oval with Flat Top	1.3 mm	Colorless	120 °	Green	2-PLCC	2-PLCC	Surface Mount	20 mA	725 mcd	Standard	1.5 mm	1 mm	Clear
QT Brightek (QTB) QBLP675-IW-NW	3.1 V		Oval with Flat Top	1.3 mm	Yellow	120 °	Neutral White	2-PLCC	2-PLCC	Surface Mount	20 mA	1650 mcd	Standard	1.5 mm	1 mm	Diffused	4000 K
QT Brightek (QTB) QBLP675-IW-WW	3.1 V	3000 K	Oval with Flat Top	1.3 mm	Yellow	120 °	Warm White	2-PLCC	2-PLCC	Surface Mount	20 mA	1540 mcd	Standard	1.5 mm	1 mm	Diffused

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.28
		100	$ 0.16
		1000	$ 0.13
	Digi-Reel®	1	$ 0.46
		10	$ 0.28
		100	$ 0.16
		1000	$ 0.13
	Tape & Reel (TR)	3000	$ 0.12

Description

General part information

QBLP675 Series

Yellow 590nm LED Indication - Discrete 2V 2-PLCC
