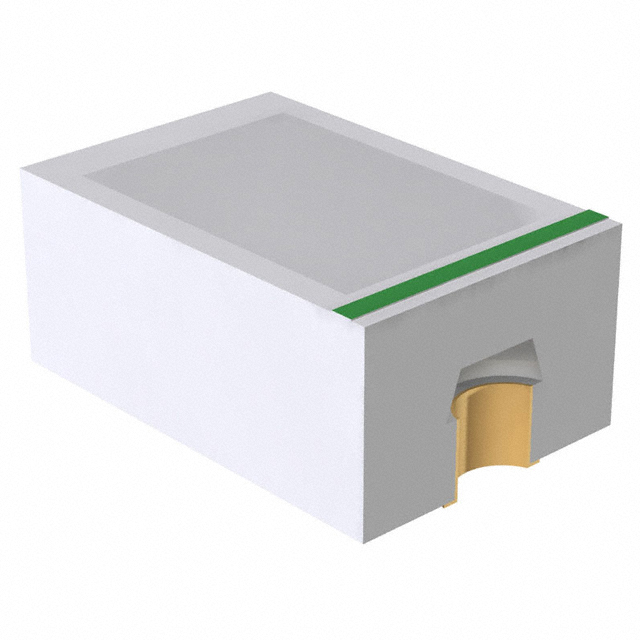

SML-010MTT87
NRNDRohm Semiconductor
LED GREEN CLEAR 3020 SMD
Deep-Dive with AI
Search across all available documentation for this part.
SML-010MTT87
NRNDRohm Semiconductor
LED GREEN CLEAR 3020 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-010MTT87 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.3 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 16 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1208 |
| Package / Case | 3020 Metric |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | 3020(1208) |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 563 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.24 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.36 | |||
| 100 | $ 0.24 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 2500 | $ 0.17 | ||
| 5000 | $ 0.15 | |||
| 12500 | $ 0.15 | |||
| 25000 | $ 0.15 | |||
| 62500 | $ 0.14 | |||
Description
General part information
SML-010 Series
Green LED Indication - Discrete 2.2V 1208 (3020 Metric)
Documents
Technical documentation and resources
No documents available
