09140124512

Active

HARTING Technology Group

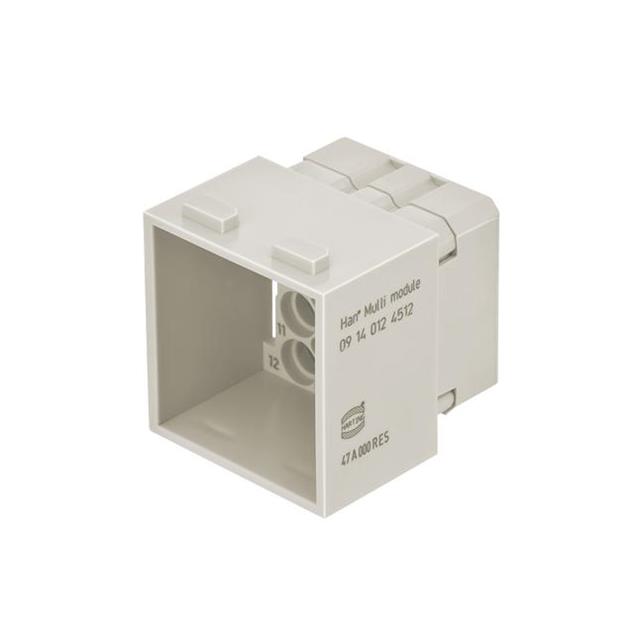

HAN MULTIMODULE FEMALE 12PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN MULTIMODULE FEMALE 12PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09140124512

Color	Gray
Connector Type	Module without Contacts
Contact Type	Coaxial, Fiber Optic
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Contact Type	Material Flammability Rating	Number of Positions	Housing Material	Connector Type
HARTING Technology Group 09140124512	Crimp	125 °C	-40 °C	Female	Gray	Coaxial Fiber Optic	UL94 V-0	12	Polycarbonate (PC)	Module without Contacts
HARTING Technology Group 09140124501	Crimp	125 °C	-40 °C	Male	Gray	Coaxial Fiber Optic	UL94 V-0	12	Polycarbonate (PC)	Module without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts Gray 12 Position Crimp

Technical documentation and resources
