10NLV1/DN

Active

J.W. Winco

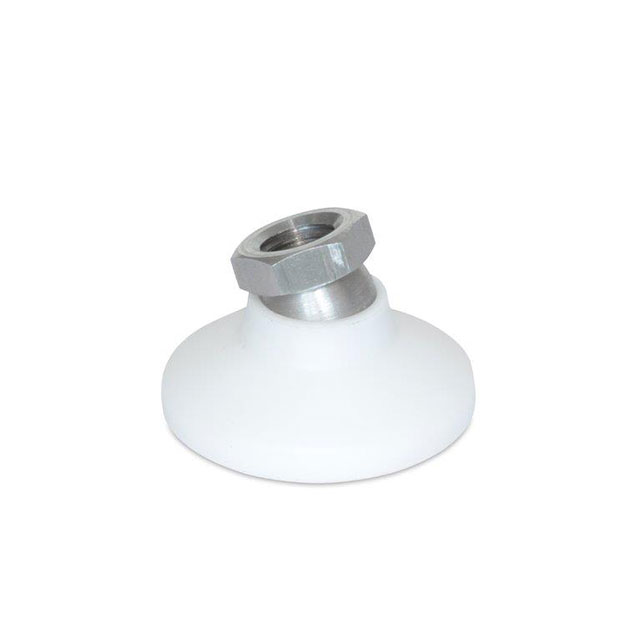

LEVELING MOUNT, TAPPED THREAD

Search across all available documentation for this part.

Active

J.W. Winco

LEVELING MOUNT, TAPPED THREAD

Technical Specifications

Parameters and characteristics for this part

Specification	10NLV1/DN

Material	Plastic
Mounting Type	Threaded Stud
Shape	Cylindrical, Recessed Center
Size / Dimension [diameter]	31.75 mm
Size / Dimension [diameter]	1.25 in
Thickness	4.32 mm
Thickness	0.17 in
Type	Foot

Part	Material	Thickness	Thickness	Shape	Type	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]
J.W. Winco 10NLV1/DN	Plastic	4.32 mm	0.17 in	Cylindrical Recessed Center	Foot	Threaded Stud	31.75 mm	1.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.33

General part information

Foot Cylindrical, Recessed Center 1.250" Dia (31.75mm) Plastic
