B03P-VL

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 6.2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 6.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B03P-VL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	20 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	16.4 mm
Insulation Height	0.646 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	29.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	6.2 mm
Pitch - Mating [x]	0.244 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 V

Part	Contact Material	Contact Type	Insulation Color	Insulation Height	Insulation Height	Contact Shape	Mated Stacking Heights	Current Rating (Amps)	Style	Insulation Material	Mounting Type	Contact Finish - Post	Number of Rows	Connector Type	Fastening Type	Shrouding	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]
JST Sales America Inc. B03P-VL	Copper Alloy	Male Pin	Natural	16.4 mm	0.646 in	Square	29.2 mm	20 A	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	Through Hole	Tin	1	Header	Latch Holder	Shrouded - 4 Wall	Solder	UL94 V-0	90 °C	-25 °C	All	3.6 mm	0.142 in	600 V	6.2 mm	0.244 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

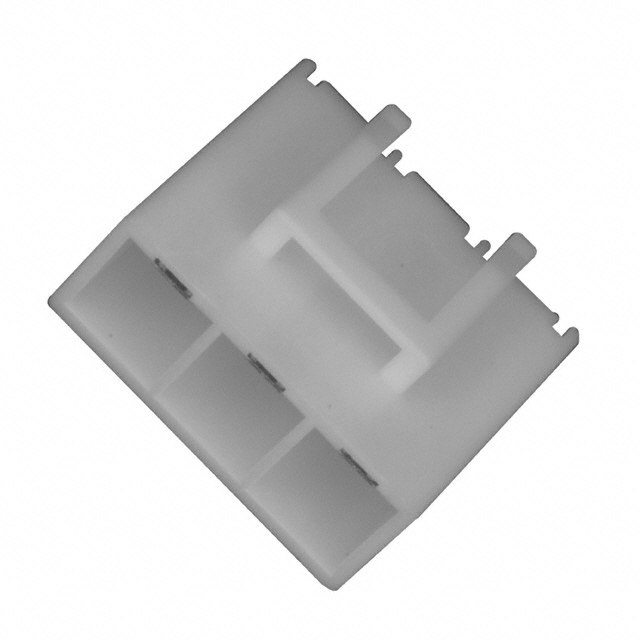

Connector Header Through Hole 3 position 0.244" (6.20mm)
