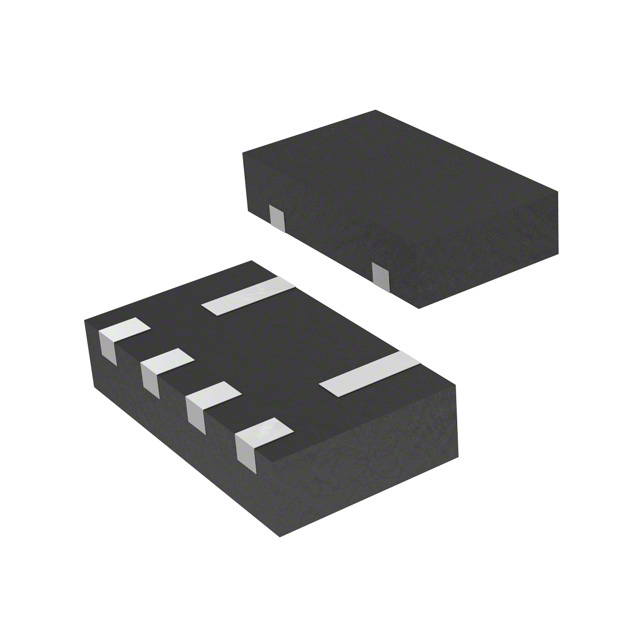

RCLAMP1624T.TCT

Active

Semtech Corporation

ESD PROTECTION DEVICE, 25 V, SLP1710P4T, 6 PINS, 12 V, 75 PF

Search across all available documentation for this part.

Active

Semtech Corporation

ESD PROTECTION DEVICE, 25 V, SLP1710P4T, 6 PINS, 12 V, 75 PF

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP1624T.TCT

Applications	USB OTG
Capacitance @ Frequency	0.7 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	6-XFDFN
Power - Peak Pulse	75 W
Power Line Protection	True
Supplier Device Package	SLP1710P4T
Type	Steering
Unidirectional Channels [custom]	3
Voltage - Breakdown (Min) [Min]	6.5 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Supplier Device Package	Type	Power Line Protection	Power - Peak Pulse	Mounting Type	Applications
Semtech Corporation RCLAMP1624T.TCT	5 V	3	6-XFDFN	125 ¯C	-55 °C	5 A	15 V	6.5 V	0.7 pF	SLP1710P4T	Steering		75 W	Surface Mount	USB OTG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transient protection for high-speed data lines toIEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)
