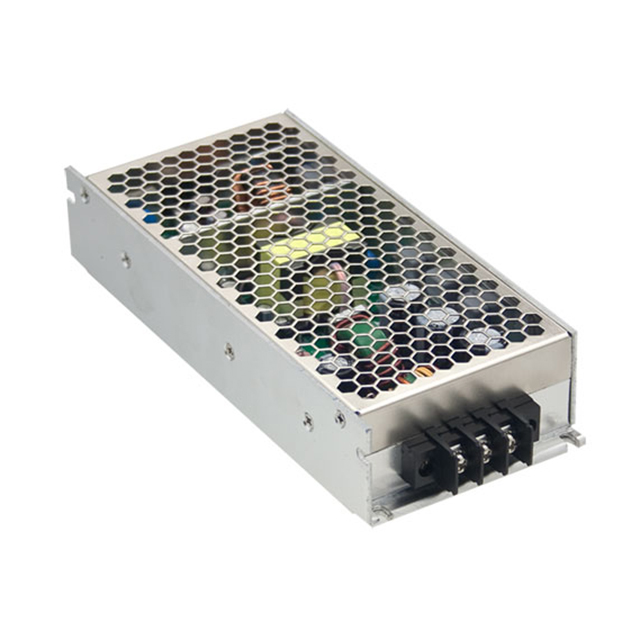

RSD-200B-12
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 12V 200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSD-200B-12
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 12V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSD-200B-12 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 16.7 A |
| Efficiency | 89 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 191 mm |
| Size / Dimension [x] | 7.52 in |
| Size / Dimension [y] | 86 mm |
| Size / Dimension [y] | 3.39 in |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 31.2 V |
| Voltage - Input (Min) [Min] | 16.8 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 117.99 | |
| 5 | $ 113.59 | |||
| 10 | $ 111.75 | |||
| 25 | $ 109.35 | |||
Description
General part information
RSD-200B Series
Enclosed DC DC Converter 1 Output 12V 16.7A 31.2V Input
